Camshaft, Removing And Installing: Notes

WARNING: This page is about a different car, the 2023 Volkswagen Atlas. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Identifying Special Tools

Courtesy of AUDI OF AMERICA, LLC

Special tools and workshop equipment required

Depending on the version of the Assembly Tool:T10352/2 or Assembly Tool:T10352/4
Counterhold - Vibration Damper:T10355
Chain Tensioner Lever:T40243
Tensioner Locking Tool:T40267
Camshaft Locks:T40271
Adapter:T40266
Sealant:D 154 103 A1

Removing

NOTE:

The sealing surfaces of the lower cylinder head cover and on the upper cylinder head must not be reworked.

The camshaft bearings are integrated in the cylinder head or cylinder head cover. The tension must be released from the camshaft timing chain before removing the cylinder head cover.

When installing, secure all cable ties back to same positions.

-- Remove the air filter housing. Refer to AIR FILTER HOUSING, REMOVING AND INSTALLING .

-- Remove the coolant hose -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connectors -1- and -2-. Open the bracket -3-.

-- Remove the ignition coils. Refer to IGNITION COILS WITH POWER OUTPUT STAGES, REMOVING AND INSTALLING .

-- Remove the ground cable bolt -1- and disconnect the coolant hoses -2 and 3-. Seal the lines using the Engine Bung Set:VAS 6122 .

Courtesy of AUDI OF AMERICA, LLC

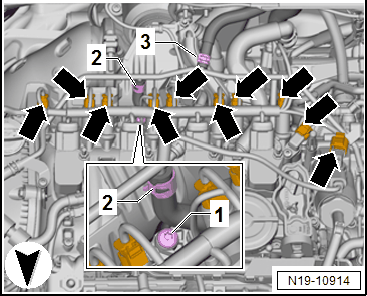

-- Disconnect the connectors -arrows-.

-- Release the catch -arrow- and remove the wiring duct -4- upward from the bracket.

Fig 2: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -1, 2 and 3-. Pivot the coolant pipe to the side.

CAUTION:

Risk of destroying the coolant pipes through deformation.

- Never change the coolant pipe bend shape.

-- Remove the upper coolant pipe. Refer to UPPER COOLANT PIPES, REMOVING AND INSTALLING .

-- Disconnect the connector -1- from the EVAP Canister Purge Regulator Valve 1 -N80-.

Fig 3: Connector And EVAP Canister Purge Regulator Valve 1 -N80

Courtesy of AUDI OF AMERICA, LLC

-- Press the release button on the crankcase ventilation hose -2- and remove the hose.

-- Remove the bolts -arrows- and the crankcase ventilation.

-- Remove the high pressure pump. Refer to HIGH PRESSURE PUMP, REMOVING AND INSTALLING .

-- Remove the vacuum pump. Refer to VACUUM PUMP, REMOVING AND INSTALLING .

-- Support the engine in the installation position. Refer to ENGINE, SUPPORTING IN INSTALLATION POSITION .

-- Remove the engine mount. Refer to ENGINE MOUNT, REMOVING AND INSTALLING .

-- Remove the noise insulation. Refer to OVERVIEW - NOISE INSULATION .

-- Remove the right wheel housing liner. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .

-- Remove the engine support. Refer to ENGINE SUPPORT, REMOVING AND INSTALLING .

-- Remove the upper timing chain cover. Refer to TIMING CHAIN COVER, REMOVING AND INSTALLING .

-- Turn the vibration damper to the "TDC point" using the Counterhold - Vibration Damper:T10355A .

Fig 4: Identifying Vibration Damper With Counterhold - Vibration Damper T10355

Courtesy of AUDI OF AMERICA, LLC

The markings -1- on the camshaft chain sprockets must be opposite the markings -2- and -3-.
The notch on the vibration damper and the marking on the lower timing chain cover -arrow- must be align.

-- Remove the lower timing chain cover. Refer to LOWER TIMING CHAIN COVER, REMOVING AND INSTALLING .

Fig 5: Removing Control Valve

Courtesy of AUDI OF AMERICA, LLC

NOTE:

The control valves have left-hand thread.

Depending on the version, different control valves can be installed. Use a fitting assembly tool -1-.

-- Remove the left and right control valves using the Assembly Tool:T10352/2 or Assembly Tool:T10352/4 in the -direction of the arrow-.

-- Remove the bolts -arrows- and remove the bearing bracket.

Fig 6: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-.

Fig 7: Identifying Bolts

Courtesy of AUDI OF AMERICA, LLC

-- Install the Chain Tensioner Lever:T40243 -arrows-.

Fig 8: Identifying Lever T40243 -Arrows-, Installation

Courtesy of AUDI OF AMERICA, LLC

-- Press the chain tensioner circlip -1- together and hold it.

-- Slowly press and hold the Chain Tensioner Lever:T40243 in the -direction of arrow-.

-- Secure the chain tensioner with the Tensioner Locking Tool:T40267 .

Fig 9: Securing Chain Tensioner With T40267

Courtesy of AUDI OF AMERICA, LLC

-- Remove the Chain Tensioner Lever:T40243 .

-- Bolt the Camshaft Lock:T40271/2 to the cylinder head and slide into the splines on the chain sprocket in the direction of the arrow -2-. Rotate the intake camshaft with the Adapter:T40266 -1- if necessary.

Fig 10: Identifying Camshaft Clamp T40271/2 And Assembly Tool T40266

Courtesy of AUDI OF AMERICA, LLC

-- Bolt the Camshaft Lock:T40271/1 to the cylinder head.

Fig 11: Checking T40271/1 Installation Position

Courtesy of AUDI OF AMERICA, LLC

The help of a second technician is necessary for the following step.

-- Use the Adapter:T40266 to hold the exhaust camshaft securely in the direction of the -arrow A-. Remove the bolt -1- and guide the tensioning rail -2- downward. Continue to turn the camshaft clockwise -A- until the Camshaft Lock:T40271/1 can be inserted into the chain sprocket splines -B-.

-- Check the installation position -C- of the Camshaft Locks:T40271/1 .

-- Remove the guide rail -1- by unlocking the latch -arrow- with a screwdriver and pushing the guide rail forward.

Fig 12: Removing Guide Rail

Courtesy of AUDI OF AMERICA, LLC

-- Press the oil pump chain tensioner bracket in the -direction of the arrow- and lock with Locking Pin (3 pc.):T40011 .

Fig 13: Identifying Locking Pin T40011

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1- and remove the chain tensioner.

-- Remove the bolts -1- and remove the guide rail -2-.

Fig 14: Removing Glide Rail

Courtesy of AUDI OF AMERICA, LLC

-- Remove the camshaft timing chain from the camshaft sprockets and guide downward.

-- Install the Assembly Tool - Turning Over Tool:T10531/3 . In the "TDC point" the flat area -1- points upward. Install the Assembly Tool - Knurled Nut:T10531/4 . Turn the crankshaft with a 32 mm open end wrench counter-clockwise out of "TDC".

Fig 15: Identifying Assembly Tool - Turning Over Tool T10531/3

Courtesy of AUDI OF AMERICA, LLC

-- Use the Adapter:T40266 to turn the intake camshaft in the direction of arrow -1-, slide the Camshaft Lock:T40271/2 out of the chain sprocket splines -2- and move the camshaft in the resting position.

Fig 16: Identifying Adapter T40266 And Intake Camshaft

Courtesy of AUDI OF AMERICA, LLC

-- Use the Adapter:T40266 to turn the exhaust camshaft in the direction of -arrow 1-, slide the Camshaft Lock:T40271/1 out of the chain sprocket splines -2- and move the camshaft in the resting position.

Fig 17: Identifying Camshaft Locating Tool T40271/1

Courtesy of AUDI OF AMERICA, LLC

-- Remove the cylinder head cover bolts in -1 to 6- sequence.

Fig 18: Cylinder Head Cover Bolt Loosening Sequence

Courtesy of AUDI OF AMERICA, LLC

-- Pry up the cylinder head cover -2- using a tool for example a screwdriver -1- starting at the chain side.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the cylinder head cover.

-- Remove the camshaft and cover the open engine components.
