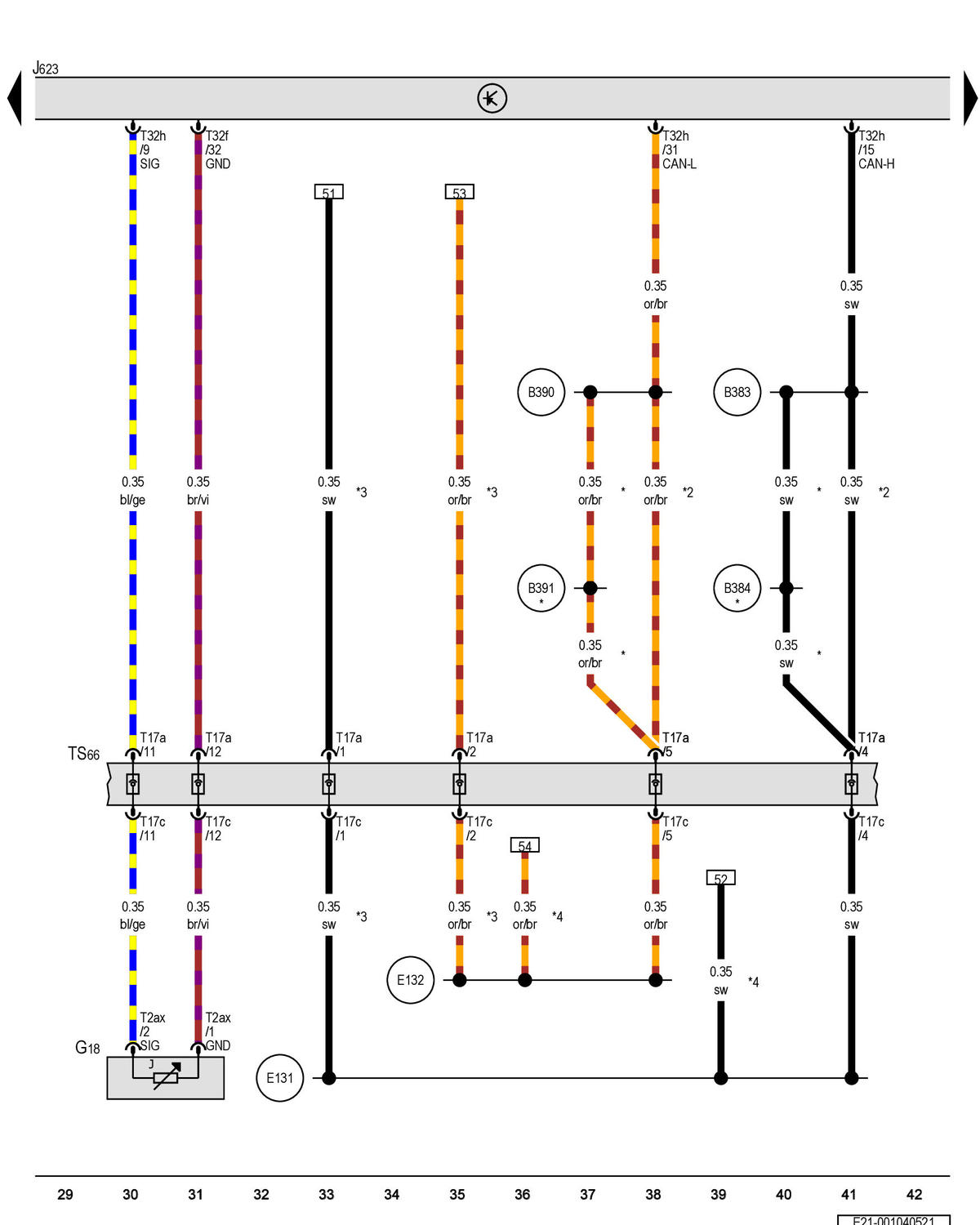

Engine/Motor Control Module

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

G18

Temperature Sensor Type:BT, Slpdok:, Aim:BTG18

J623

Engine/Motor Control Module Type:BT, Slpdok:, Aim:BTJ623

T2ax

2-Pin Connector, Black

T17a

17-Pin Connector, Black Type:BT, Slpdok:, Aim:BTT17a

T17c

17-Pin Connector, Black Type:BT, Slpdok:, Aim:BTT17c

T32f

32-Pin Connector, Gray Type:VA, Slpdok:, Aim:VAT32f

T32h

32-Pin Connector, Blue Type:VA, Slpdok:, Aim:VAT32h

TS66

Rear Suspension Coupling Point

B383

Powertrain CAN Bus High Connection 1 (in Main Wiring Harness)

B384

Powertrain CAN Bus High Connection 2 (in Main Wiring Harness)

B390

Powertrain CAN Bus Low Connection 1 (in Main Wiring Harness)

B391

Powertrain CAN Bus Low Connection 2 (in Main Wiring Harness)

E131

CAN Bus Drive High Connection 5 (in Engine Wiring Harness)

E132

CAN Bus Drive Low Connection 5 (in Engine Wiring Harness)

For USA Only

Not for USA

For Rear Wheel Drive Vehicles

For AWD Vehicles
