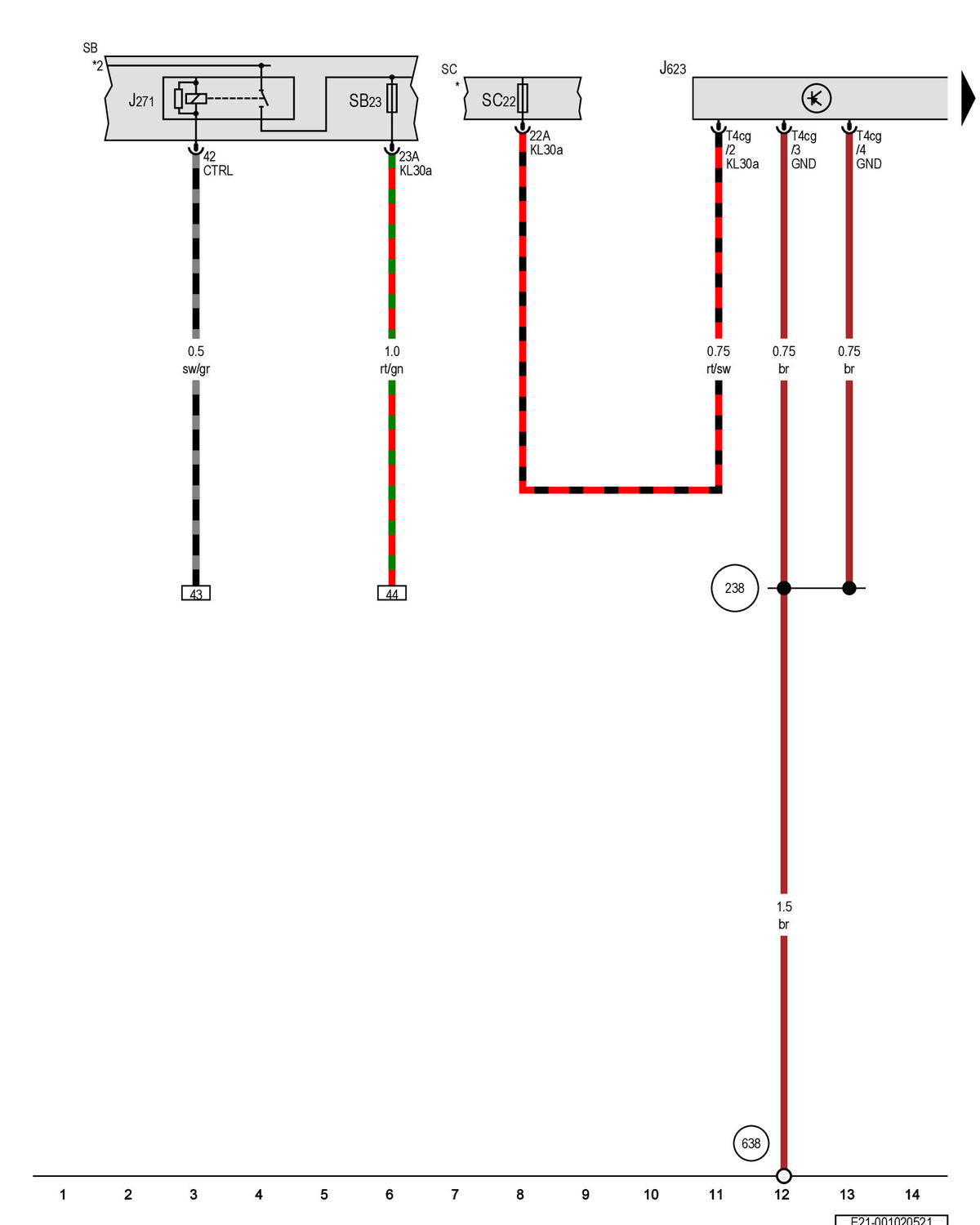

Engine/Motor Control Module, Fuse Panel B, Fuse Panel C

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J271

Motronic Engine Control Module Power Supply Relay Type:BT, Slpdok:, Aim:BTJ271

J623

Engine/Motor Control Module Type:BT, Slpdok:, Aim:BTJ623

SB

Fuse Panel B Type:BT, Slpdok:, Aim:BTSB-

SC

Fuse Panel C Type:BT, Slpdok:, Aim:BTSC-

SC22

Fuse 22 (On Fuse Panel C) Type:BT, Slpdok:, Aim:BTSC-

SB23

Fuse 23 (On Fuse Panel B) Type:BT, Slpdok:, Aim:BTSB-

T4cg

4-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT4cg

238

Ground Connection 1 (in Interior Wiring Harness)

638

Ground Connection on Right A-Pillar Type:VB, Slpdok:, Aim:VB638

*

Refer to Applicable Wiring Diagram for Fuses in Vehicle Interior

*2

Refer to Applicable Wiring Diagram for Fuses in Engine/Motor Compartment
