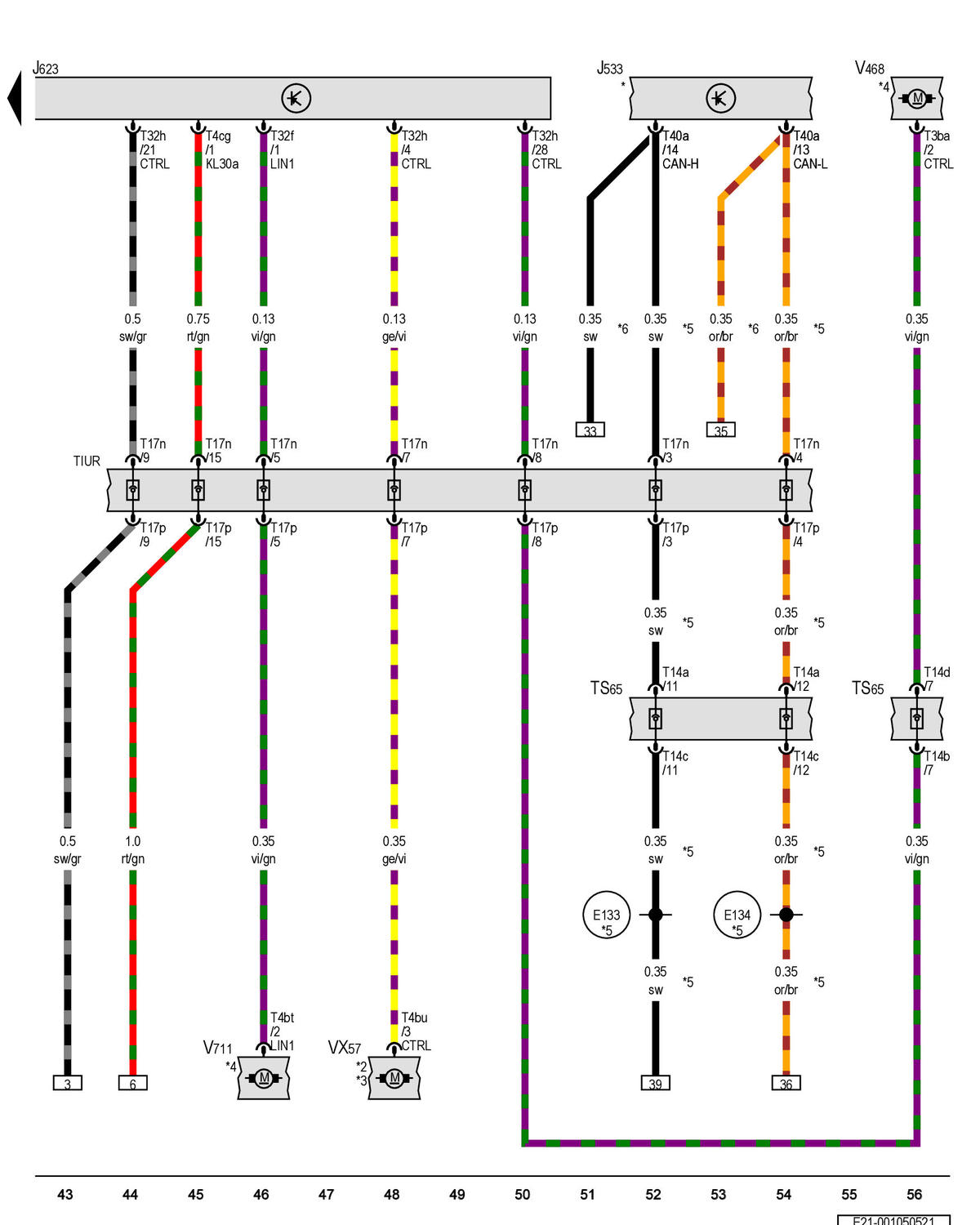

Data Bus On Board Diagnostic Interface, Engine/Motor Control Module, Radiator Fan, Low Temperature Circuit Coolant Pump, Radiator Blind Adjustment Motor

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

J533

Data Bus on Board Diagnostic Interface Type:BT, Slpdok:, Aim:BTJ533

J623

Engine/Motor Control Module Type:BT, Slpdok:, Aim:BTJ623

T3ba

3-Pin Connector, Black

T4bt

4-Pin Connector, Black

T4bu

4-Pin Connector, Black

T4cg

4-Pin Connector, Black Type:VA, Slpdok:, Aim:VAT4cg

T14a

14-Pin Connector, Black Type:BT, Slpdok:, Aim:BTT14a

T14b

14-Pin Connector, Black Type:BT, Slpdok:, Aim:BTT14b

T14c

14-Pin Connector, Black Type:BT, Slpdok:, Aim:BTT14c

T14d

14-Pin Connector, Black Type:BT, Slpdok:, Aim:BTT14d

T17n

17-Pin Connector, Brown Type:BT, Slpdok:, Aim:BTT17n

T17p

17-Pin Connector, Brown Type:BT, Slpdok:, Aim:BTT17p

T32f

32-Pin Connector, Gray Type:VA, Slpdok:, Aim:VAT32f

T32h

32-Pin Connector, Blue Type:VA, Slpdok:, Aim:VAT32h

T40a

40-Pin Connector, Black Type:BT, Slpdok:, Aim:BTT40a Type:VA, Slpdok:, Aim:VAT40a

TIUR

Coupling Point in Interior, Bottom Right

TS65

Front Suspension Coupling Point

VX57

Radiator Fan Type:BT, Slpdok:, Aim:BTVX57

V468

Low Temperature Circuit Coolant Pump Type:BT, Slpdok:, Aim:BTV468

V711

Radiator Blind Adjustment Motor Type:BT, Slpdok:, Aim:BTV711

E133

CAN Bus Drive High Connection 6 (in Engine Wiring Harness)

E134

CAN Bus Drive Low Connection 6 (in Engine Wiring Harness)

*

Refer to the Applicable Powertrain CAN Bus Network Data Bus Wiring Diagram

*2

Refer to Applicable Radiator Fan Wiring Diagram

*3

Pre-Wired Component

*4

Refer to Applicable Thermo Management Wiring Diagram

*5

For AWD Vehicles

*6

For Rear Wheel Drive Vehicles
