Overview - Cylinder Block, Transmission Side
NOTE:
For assembly work, secure the engine on the engine and transmission holder. Refer to ENGINE, SECURING TO ENGINE AND TRANSMISSION HOLDER .
- Bolt
- 60 Nm + 90°
- Always replace after removing.
- Flywheel
- Only possible to install in one position
- Removing and installing. Refer to FLYWHEEL, REMOVING AND INSTALLING .
- Engine Speed Sensor -G28-
- Removing and installing. Refer to Engine Speed Sensor -G28-, REMOVING AND INSTALLING .
- Bolt
- Tightening specification. Refer to OVERVIEW - IGNITION SYSTEM .
- Alignment Pin
- Quantity: 2
- Intermediate Plate
- Be careful not to damage or bend it when installing.
- Installing. Refer to Fig 3.
- Bolt
- Tightening specification and sequence. Refer to Fig 2.
- Sealing Flange with Sensor Wheel and Seal
- Only replace the sealing flange completely with the seal and sensor wheel
- Removing and installing. Refer to SEALING FLANGE, REMOVING AND INSTALLING, TRANSMISSION SIDE .

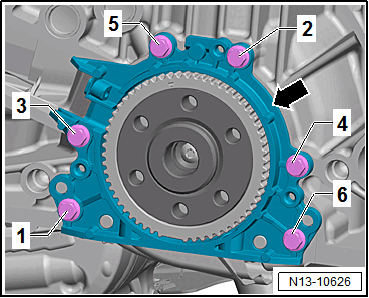

Transmission Side Sealing Flange - Tightening Specifications and Sequence
-- Tighten the bolts in stages as follows:
| Step | Component | Tightening Specification |
|---|---|---|
| 1 | -1 to 6- | Install by hand all the way |
| 2 | -1 to 6- | Tighten diagonally in stages to 10 Nm |
Intermediate Plate, Installing
-- Engage the intermediate plate -1- on the sealing flange -2- -arrow B-.
-- Push the intermediate plate on the alignment sleeves -arrows A-.
