Ribbed Belt, Removing And Installing, Vehicles With A/C Compressor: Installing

Install in reverse order of removal and note the following:

Different decoupling belt pulleys could be installed depending on the type and version of the generator. Refer to Figure.

Based on the version of the decoupling belt pulley, allocate the length of the ribbed belt pulley. Refer to Parts Information.

-- Position the ribbed belt as shown.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Vibration Damper
2. Ribbed Belt Tensioner
3. Generator
4. A/C Compressor

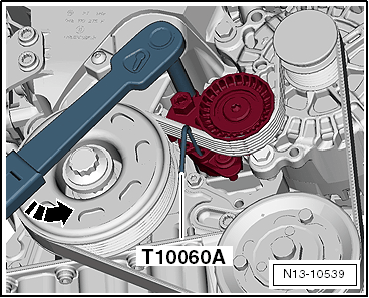

-- Turn the tensioner counter-clockwise in direction of -arrow-, and remove the : T10060A  .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the tension on the tensioner.

-- Check whether the ribbed belt is routed correctly.

-- Start the engine and check whether the ribbed belt runs correctly.
