Overview - Instrument Panel

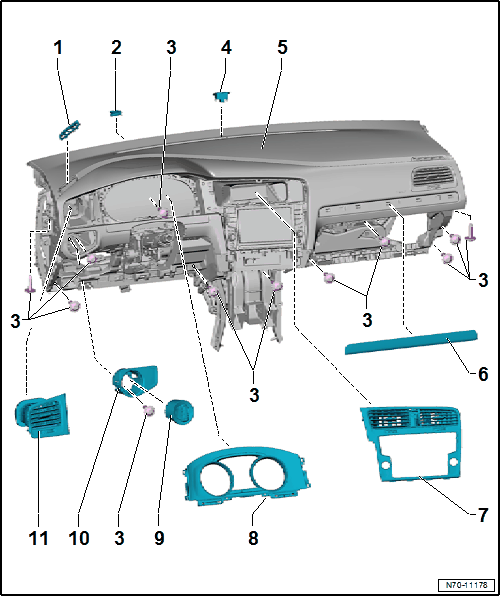

Fig 1: Exploded View Of Instrument Panel

Courtesy of AUDI OF AMERICA, LLC

Side Defroster Vent
- Left and right
- Removing and Installing. Refer to SIDE DEFROSTER VENT, REMOVING AND INSTALLING .
Rubber Buffer
- Pushed on the instrument panel mount under the windshield frame
- Quantity: 2
Bolt
- 1.5 Nm
Sunlight Photo Sensor -G107-
- Removing and installing. Refer to SUNLIGHT PHOTO SENSOR -G107-, REMOVING AND INSTALLING .
Instrument Panel
- Removing and Installing. Refer to INSTRUMENT PANEL, REMOVING AND INSTALLING .
Instrument Panel Decorative Trim
- Allocation. Refer to the Parts Information.
- Removing and Installing. Refer to INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING .
Center Vent with Front Information Display Control Head -J685- Trim
NOTE:
Always remove the Front Information Display Control Head -J685- trim together with the center vent.
- Removing and Installing. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
Instrument Cluster Trim
- Removing and Installing. Refer to INSTRUMENT CLUSTER TRIM, REMOVING AND INSTALLING .
Rotary Light Switch -EX1-
- Removing and Installing. Refer to COMPONENT LOCATION OVERVIEW - INSTRUMENT PANEL CONTROLS .
Light Switch Trim
- Removing and Installing. Refer to LIGHT SWITCH TRIM, REMOVING AND INSTALLING .
Side Instrument Panel Vent
- Left and right
- Removing and Installing. Refer to INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
