Overview - Front Parking Aid

NOTE:

The Sedan is shown. The Wagon is identical.

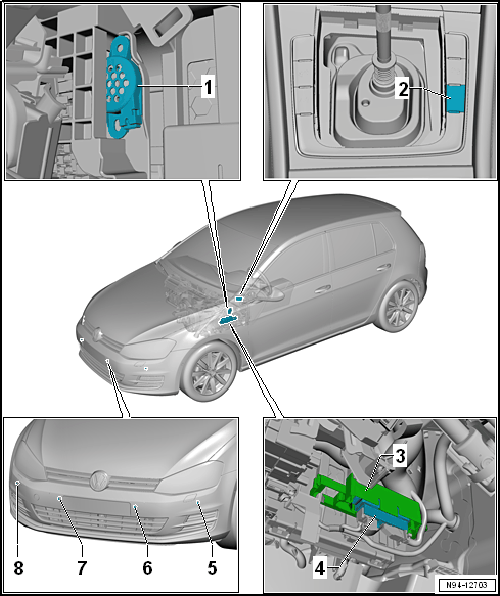

Fig 1: Front Parking Aid

Courtesy of AUDI OF AMERICA, LLC

Front Parking Aid Warning Buzzer -H22-
- Removing and installing. Refer to Front Parking Aid Warning Buzzer -H22-, REMOVING AND INSTALLING .
Parking Aid Button -E266-
- Removing and installing. Refer to Parking Aid Button -E266-, REMOVING AND INSTALLING .
Bracket
- For the Parking Aid Control Module -J446-
- Removing and installing. Refer to Parking Aid Control Module -J446- /Parallel Parking Assistance Control Module -J791- BRACKET, REMOVING AND INSTALLING .
Parking Aid Control Module -J446-
- Removing and installing. Refer to Parking Aid Control Module -J446-, REMOVING AND INSTALLING .
Left Front Parking Aid Sensor -G255-
- Removing and installing. Refer to FRONT PARKING AID SENSOR, REMOVING AND INSTALLING .
Left Front Center Parking Aid Sensor -G254-
- Removing and installing. Refer to FRONT PARKING AID SENSOR, REMOVING AND INSTALLING .
Right Front Center Parking Aid Sensor -G253-
- Removing and installing. Refer to FRONT PARKING AID SENSOR, REMOVING AND INSTALLING .
Right Front Parking Aid Sensor -G252-
- Removing and installing. Refer to FRONT PARKING AID SENSOR, REMOVING AND INSTALLING .
