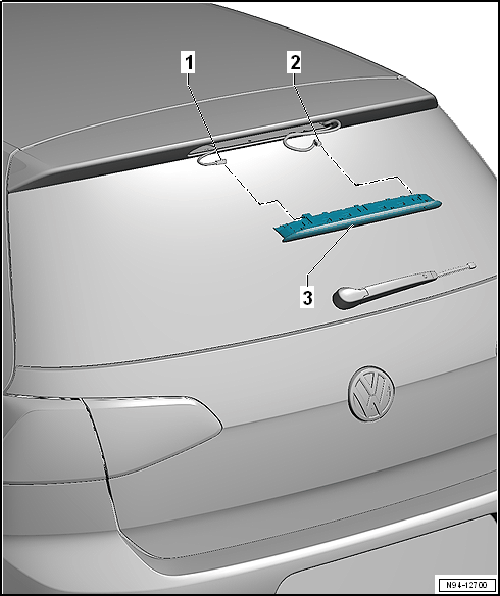

Overview - High-Mounted Brake Lamp, Except "GTI"

Courtesy of AUDI OF AMERICA, LLC

1. Connector
   • For brake lamp
2. Washer Fluid Hose Connection
   • For the washer nozzle
3. High-Mounted Brake Lamp
   • With High-Mounted Brake Lamp Bulb -M25-
   • Removing and installing. Refer to HIGH-MOUNTED BRAKE LAMP, REMOVING AND INSTALLING, EXCEPT "GTI" .
