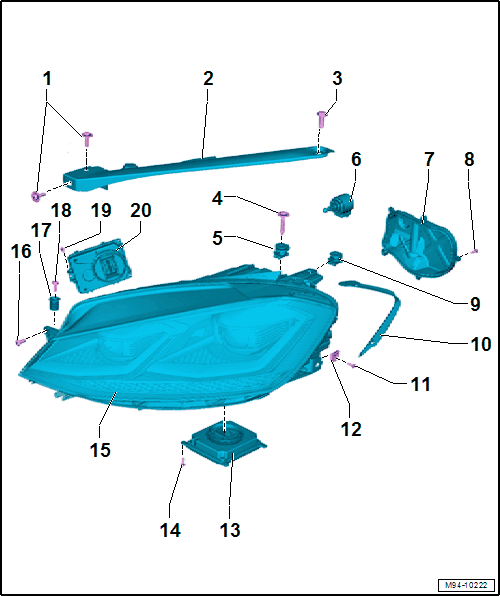

Overview - Headlamps, Led Headlamps
- Bolt
- Tightening Specification. Refer to OVERVIEW - LOCK CARRIER .
- Quantity: 2
- Support
- Bolt
- 8 Nm
- Bolt
- 4 Nm
- Lifter
- Headlamp Beam Adjustment Motor
- Left Headlamp Beam Adjustment Motor -V48-
- Right Headlamp Beam Adjustment Motor -V49-
- Removing and installing. Refer to LEFT AND RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49-, REMOVING AND INSTALLING, LED HEADLAMPS .
- Housing Cover
- Use if a repair is required
- For headlamp beam adjustment motor
- Bolt
- 1.2 Nm
- Use if a repair is required
- Quantity: 5
- Lifter
- Gap Seal
- Knotted in the headlamp
- Bolt
- 4 Nm
- For attaching the bumper guide
- Spring Nut
- LED Headlamp Power Output Module 1
- Right LED Headlamp Power Output Module 1 -A27-
- Left LED Headlamp Power Output Module 1 -A31-
- Removing and installing. Refer to LEFT AND RIGHT LED HEADLAMP POWER OUTPUT MODULE 1 -A31- AND -A32-, REMOVING AND INSTALLING .
- Bolt
- 1.2 Nm
- Quantity: 4
- Headlamps
- Left Front Headlamp -MX1-
- Right Front Headlamp -MX2-
- Removing and installing. Refer to HEADLAMP, REMOVING AND INSTALLING .
- Installation position, correcting. Refer to HEADLAMP INSTALLATION POSITION, CORRECTING .
- Adjusting. Refer to HEADLAMP, ADJUSTING .
- Impact Screw
- For adjusting the headlamp parallel to the hood edge
- Banjo Bolt
- For the headlamp height adjustment
- Bolt
- 4 Nm
- For attaching to the lock carrier
- Bolt
- 1.2 Nm
- Quantity: 3
- Headlamp Power Output Module
- Left Headlamp Power Output Module -J667-
- Right Headlamp Power Output Module -J668-
- Removing and installing. Refer to LEFT AND RIGHT HEADLAMP POWER OUTPUT MODULE -J667- / -J668-, REMOVING AND INSTALLING .
