Headlamp Housing Repair Kit, Installing
Special tools and workshop equipment required
- Torque Screwdriver:VAS6494
Headlamp mounting tabs that have broken off can be replaced by installing the repair set. Completely replacing the headlamp is therefore not necessary.
There are different repair kits for left and right headlamps. Refer to Parts Information.
The removal and installation is described for the left side. Removing and installing on the right side is identical.
-- Remove the headlamp with the broken tabs. Refer to HEADLAMP, REMOVING AND INSTALLING .
-- Remove the rest of the broken mounting tab on the headlamp housing.

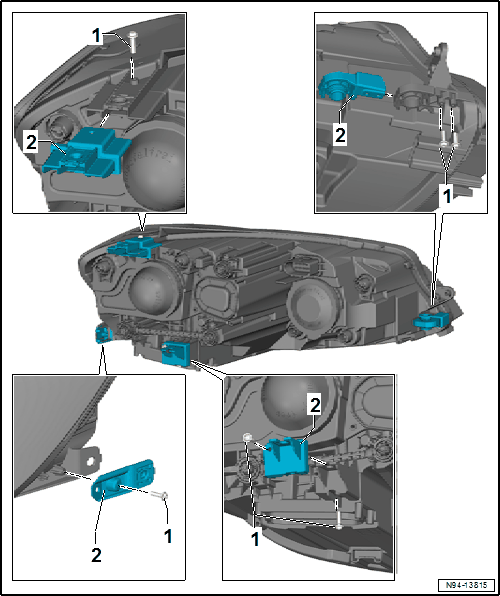

-- Install the repair kit mounting tab -2- on the headlamp.
-- Install the screws -1-.
-- Install the headlamp and align to the body contour.
-- Perform a function test.
-- Check the headlamp adjustment and adjust the headlamp if necessary.
Tightening Specifications
