Left And Right Front Fog Lamp Bulb -L22- / -L23-, Removing And Installing: Removing

-- Turn the light switch into neutral position.

-- Turn off the ignition and all electrical equipment.

-- Remove the ignition key, if equipped.

-- Turn the steering to the right.

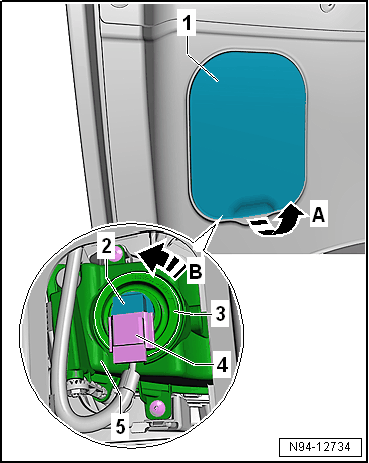

-- Pry out the cover -1- in the wheel housing liner in the direction of -arrow A-.

GWWN94-12734Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -4-.

-- Turn and release the Left Front Fog Lamp Bulb -L22- -2- in the direction of -arrow B-.

-- Remove the Left Front Fog Lamp Bulb -L22- -2- from the fog lamp housing -5-.
