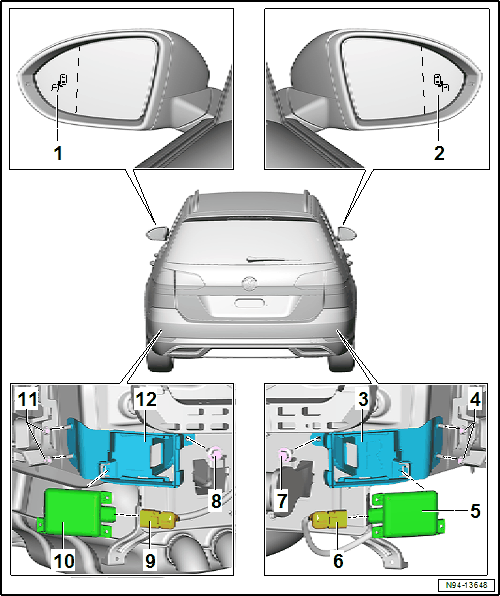

Overview - Blind Spot Detection, Wagon

Courtesy of AUDI OF AMERICA, LLC

Blind Spot Detection Warning Lamp in Left Exterior Mirror -K303-
- Removing and installing. Refer to BLIND SPOT DETECTION WARNING LAMP IN LEFT AND RIGHT EXTERIOR MIRROR -K303- / -K304-, REMOVING AND INSTALLING .
Blind Spot Detection Warning Lamp in Right Exterior Mirror -K304-
- Removing and installing. Refer to BLIND SPOT DETECTION WARNING LAMP IN LEFT AND RIGHT EXTERIOR MIRROR -K303- / -K304-, REMOVING AND INSTALLING .
Bracket
- Removing and installing. Refer to BLIND SPOT DETECTION CONTROL MODULES -J1086- / -J1087-, REMOVING AND INSTALLING, WAGON .
Bolt
- 4 Nm
- Quantity: 2
Blind Spot Detection Control Module -J1086-
- Master
- Removing and installing. Refer to BLIND SPOT DETECTION CONTROL MODULES -J1086- / -J1087-, REMOVING AND INSTALLING, WAGON .
Connector
Bolt
- Tightening specification. Refer to OVERVIEW - IMPACT MEMBER .
Bolt
- Tightening specification. Refer to OVERVIEW - IMPACT MEMBER .
Connector
Blind Spot Detection Control Module 2 -J1087-
- Slave
- Removing and installing. Refer to BLIND SPOT DETECTION CONTROL MODULES -J1086- / -J1087-, REMOVING AND INSTALLING, WAGON .
Bolt
- 4 Nm
- Quantity: 2
Bracket
- Removing and installing. Refer to BLIND SPOT DETECTION CONTROL MODULES -J1086- / -J1087-, REMOVING AND INSTALLING, WAGON .
