Special Tools

Fig 1: Identifying Special Tools

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Special tools and workshop equipment required

• Electronic Torque Wrench 3-60Nm: VAS6583
• Counterhold - Multiple Use: T10172A  with Adapter : T10172/1
• Crankshaft Locking Pin: T10340
• Counterhold - Pulley: T10475
• Wrench - Open Ring - 30mm: T10499
• Insert Tool - 13mm: T10500

Special tools and workshop equipment required

• Counterhold - Multiple Use: T10172A
  Fig 2: Counterhold - Kit - Multiple Use T10172

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Crankshaft Locking Pin: T10340
• Socket T30: T10405
  Fig 3: Identifying Socket T10405

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Seal Installer - Camshaft: T10478B

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Seal Installer - Camshaft - Thrust Piece: T10478/1A
• Guide Sleeve: T10478/2
• Fitting Sleeve: T10478/3
• Hexagon Bolt M10x1.25x46: T10478/5
• Seal Installer - Camshaft: T10479A

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Thrust Piece: T10479/1
• Guide Sleeve: T10479/2
• Sleeve: T10479/3

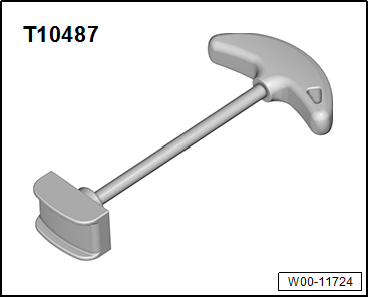

• Assembly Tool: T10487

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Camshaft Lock: T10494

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

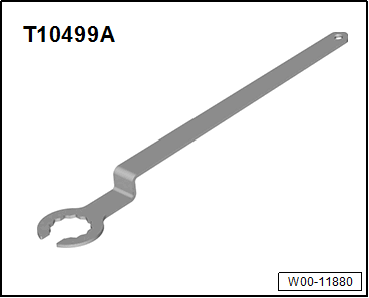

• Ring Spanner AF30 : T10499A

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Intake Manifold Release Tool: T10527  (not illustrated)
• Intake Manifold Release Tool: T10527/1  (not illustrated)
• Screwdriver (shaft length at least 250 mm) (not illustrated)
• Counterhold: T10554

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

• Counterhold: T10554/1
• Counterhold - Knurled Bolt: T10554/2  (not illustrated).
• Puller - Crankshaft/Power Steering Seal: T20143
  Fig 4: Crankshaft / Power Steering Seal Puller

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Socket - Xzn 12: T40270
  Fig 5: Socket - Xzn 12

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Compression Tester Kit: VAG1763
  Fig 6: Compression Tester Kit VAG 1763

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Dial Gauge - 0-10mm: VAS6079
  Fig 7: Dial Gauge

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Valve Keeper Tool Kit: VAS5161A  with Valve Keeper Tool Kit - Guide Plate 32: VAS5161A/32  .
  Fig 8: Valve Keeper Tool Kit VAS5161A

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Sleeve: VAS5161A/32-3
• Valve Keeper Tool Kit - Pressure Fork: VAS5161/2
• Valve Cotter Tool Kit - Punch: VAS5161/3A
• Guide Forks M6/M8 with Valve Cotter Tool Kit - Threaded Studs: VAS5161/5
• Valve Cotter Tool Kit - Retainer: VAS5161/6
• Knurled Thumb Screws M6: VAS5161/12
• Guide Plate: VAS5161/32-1
• Valve Keeper Tool Kit - Guide Plate 32: VAS5161A/32-1
• Installation Cartridge: VAS5161/32-2
• Sleeve: VAS5161A/32-3
• Adapter: VAS5161A/35
• Dial Indicator - 0-10mm: VAS 6079
  Fig 9: Dial Gauge

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Engine And Transmission Holder: VAS6095
  Fig 10: Engine And Transmission Holder

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Engine Bung Set: VAS6122
  Fig 11: Engine Bung Set

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Torque Wrench 1783 - 1/4" Drive Ratchet: VAS6234
• Cylinder Head Tensioning Device: VAS6419
  Fig 12: Cylinder Head Tensioning Device

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Electronic Torque Wrench 3-60Nm: VAS6583
  Fig 13: Electronic Torque Wrench 3-60Nm

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Pliers - Valve Seal: VAS6770
  Fig 14: Pliers - Valve Seal

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Dial Gauge Holder: VW387
  Fig 15: Dial Gauge Holder

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Spark Plug Removal Tool: 3122B
  Fig 16: Identifying Spark Plug Removal Tool 3122B

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
• Seal Installer - Valve Stem: 3365
  Fig 17: Identifying Seal Installer - Valve Stem 3365

  Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
