Cylinder Head, Removing And Installing: Removing

-- During installation, all heat shields must be reinstalled at the same location.

-- Secure all standard production hose clamps. Refer to the Parts Information.

-- Cover the opening of the transmission with a cleaning cloth, so that no fluid enters the clutch housing.

-- Remove the camshaft housing. Refer to CAMSHAFT HOUSING, REMOVING AND INSTALLING .

-- Remove the intake manifold. Refer to INTAKE MANIFOLD, REMOVING AND INSTALLING .

-- Release and disconnect the connectors.

Fig 1: Identifying Reduced Oil Pressure Switch, Fuel Pressure Sensor And Fuel Injectors
GWWA15-11371Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. From the Reduced Oil Pressure Switch -F378-
  2. On the Fuel Pressure Sensor -G247-
  3. On the Cylinder 1 Fuel Injector -N30- through Cylinder 4 Fuel Injector -N33-

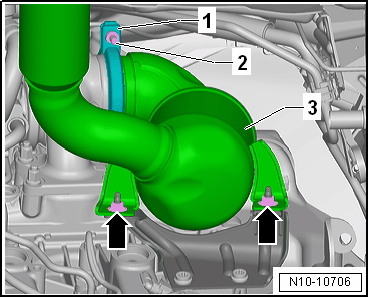

-- Remove the screw -2-.

GWWN10-10706Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Mark the position of the clamp for reinstallation.

-- Remove the screw-type clamp -1-.

-- Remove the nuts -arrows- and tie up the catalytic converter -3-.

-- Remove the bolts -arrows- and remove the right drive axle heat shield.

Fig 2: Drive Axle Heat Sheild
GWWN34-11369Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the heat shield boot.

Fig 3: Identifying Oil Pressure Switch Connector
GWWA17-10801Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connector -arrow- from the Oil Pressure Switch -F1-.

-- Remove the bolts -arrows- and then remove the oil supply line -1- and oil return pipe -2-.

Fig 4: Identifying Oil Supply Line And Oil Return Pipe
GWWA21-10606Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disconnect the connectors.

Fig 5: Identifying Engine Coolant Temperature Sensor And Charge Pressure Actuator
GWWN15-10871Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1 -  For the Engine Coolant Temperature Sensor -G62-

2 -  For the Charge Air Pressure Actuator -V465-

-- Remove the bolt -1- on the engine support.

GWWN10-10700Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

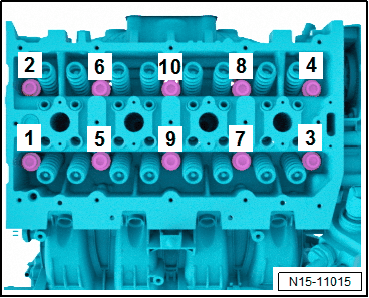

-- Loosen and remove the cylinder head bolts in the sequence -1 to 10-.

GWWN15-11015Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the cylinder head and place it on a soft surface (foam).

NOTE:

Using a cleaning cloth immediately remove coolant that is sitting on the piston and adhered to the cylinder wall.
