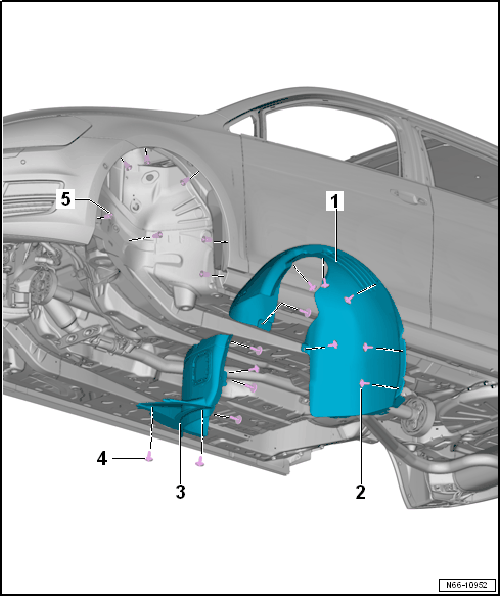

Overview - Front Wheel Housing Liner
NOTE:
Depending on the model version, slight deviations of the front wheel housing liner must be considered when removing and installing.
The illustration shows the left side. The procedure for the right side is the same.
- Front Wheel Housing Liner
- PP/EPDM material
- Removing and Installing. Refer to FRONT WHEEL HOUSING LINER, REMOVING AND INSTALLING .
- Bolt
- 2 Nm
- Quantity: 7 on each side
- Wheel Housing Liner Front Section
- PP/EPDM material
- With cover
- There are different versions. Refer to the Parts Information for the allocation.
- Bolt
- 2 Nm
- Quantity: 6 on each side
- Expanding Nut
- Quantity: 7 on each side
