Overview - Body Tail Lamps

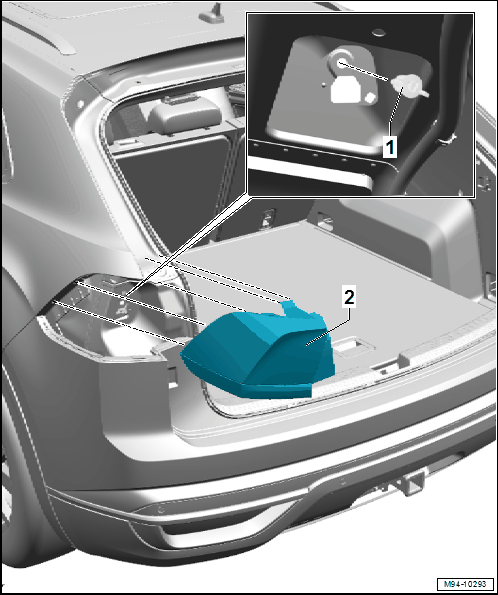

Fig 1: Exploded View Of Body Tail Lamp
GWWM94-10293Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Fastening Element
    • As a quick release
    • To remove turn 90° (1 /4 turn) and remove
  2. Tail Lamp
