Component Location Overview - Instrument Panel Lamps

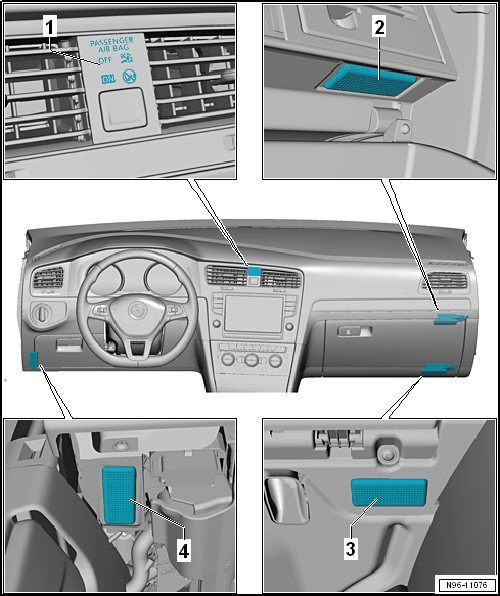

Fig 1: Exploded View Of Instrument Panel Lamps

Courtesy of AUDI OF AMERICA, LLC

1. Front Passenger Airbag -Disabled- Indicator Lamp -K145-
   • Is removed together with the Emergency Flasher Switch -EX3-.
   • Emergency Flasher Switch -EX3- removing. Refer to Emergency Flasher Switch -EX3-, REMOVING AND INSTALLING .
2. Glove Compartment Lamp -W6-
   • Removing and installing. Refer to Glove Compartment Lamp -W6-, REMOVING AND INSTALLING .
3. Right Front Footwell Lamp -K269-
   • Removing and installing. Refer to LEFT AND RIGHT FRONT FOOTWELL LAMP -K268- / -K269-, REMOVING AND INSTALLING .
4. Left Front Footwell Lamp -K268-
   • Removing and installing. Refer to LEFT AND RIGHT FRONT FOOTWELL LAMP -K268- / -K269-, REMOVING AND INSTALLING .
