Component Location Overview - Instrument Panel Controls

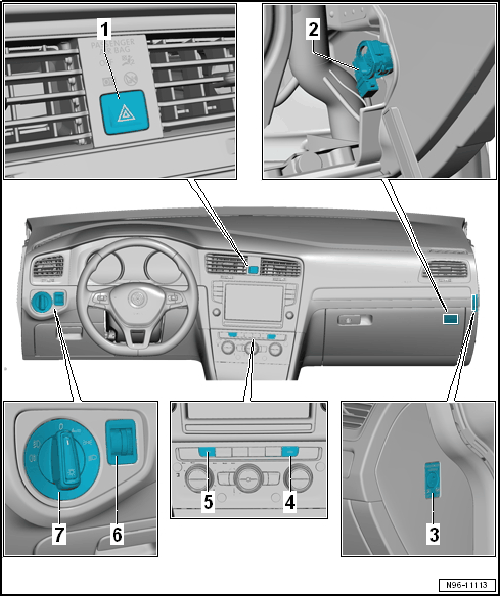

Fig 1: Exploded View Of Instrument Panel Controls

Courtesy of AUDI OF AMERICA, LLC

1. Emergency Flasher Switch -EX3-
   • Removing and installing. Refer to Emergency Flasher Switch -EX3-, REMOVING AND INSTALLING .
2. Glove Compartment Lamp Switch -E26-
   • Removing and installing. Refer to Glove Compartment Lamp Switch -E26-, REMOVING AND INSTALLING .
3. Front Passenger Airbag Deactivation Key Switch -E224-
   • Removing and installing. Refer to FRONT PASSENGER AIRBAG DEACTIVATION KEY SWITCH, REMOVING AND INSTALLING .
4. Right Seat Heating Button -E654-
   • Integrated in the display control head:
     • Heater Control Module -J65- or
     • A/C Control Module -J301- or
     • Climatronic Control Module -J255-
   • Cannot be replaced separately if faulty.
   • Heater Control Module -J65- /A/C Control Module -J301- /Climatronic Control Module -J255- removing and installing. Refer to OVERVIEW - DISPLAY CONTROL HEAD .
5. Left Seat Heating Button -E653-
   • Integrated in the display control head:
     • Heater Control Module -J65- or
     • A/C Control Module -J301- or
     • Climatronic Control Module -J255-
   • Cannot be replaced separately if faulty.
   • Heater Control Module -J65- /A/C Control Module -J301- /Climatronic Control Module -J255- removing and installing. Refer to OVERVIEW - DISPLAY CONTROL HEAD .
6. Instrument Panel and Switch Illumination Dimmer Switch -E20-
   • Removing and installing. Refer to Instrument Panel and Switch Illumination Dimmer Switch -E20-, REMOVING AND INSTALLING .
7. Rotary Light Switch -EX1-
   • Removing and installing. Refer to Rotary Light Switch -EX1-, REMOVING AND INSTALLING .
