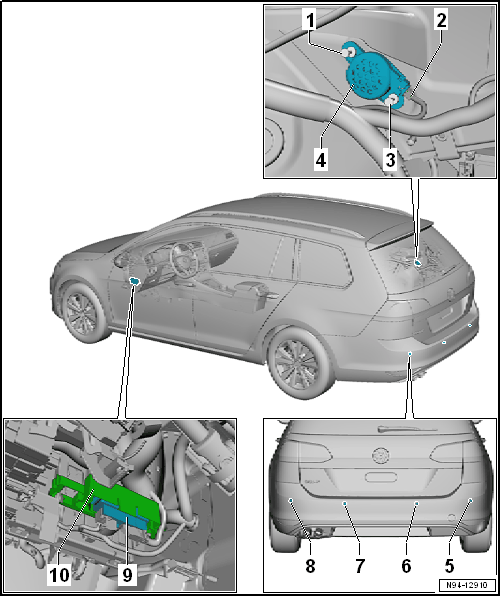

Overview - Rear Parking Aid, Wagon

Courtesy of AUDI OF AMERICA, LLC

Expanding Clip
Connector
Expanding Clip
Rear Parking Aid Warning Buzzer -H15-
- Removing and installing. Refer to Rear Parking Aid Warning Buzzer -H15-, REMOVING AND INSTALLING, WAGON .
Right Rear Parking Aid Sensor -G206-
- Removing and installing. Refer to REAR PARKING AID SENSOR, REMOVING AND INSTALLING .
Right Rear Center Parking Aid Sensor -G205-
- Removing and installing. Refer to REAR PARKING AID SENSOR, REMOVING AND INSTALLING .
Left Rear Center Parking Aid Sensor -G204-
- Removing and installing. Refer to REAR PARKING AID SENSOR, REMOVING AND INSTALLING .
Left Rear Parking Aid Sensor -G203-
- Removing and installing. Refer to REAR PARKING AID SENSOR, REMOVING AND INSTALLING .
Parking Aid Control Module -J446-
- Removing and installing. Refer to Parking Aid Control Module -J446-, REMOVING AND INSTALLING .
Bracket
- For the Parking Aid Control Module -J446-
- Removing and installing. Refer to Parking Aid Control Module -J446- /Parallel Parking Assistance Control Module -J791- BRACKET, REMOVING AND INSTALLING .
