Overview - Hood

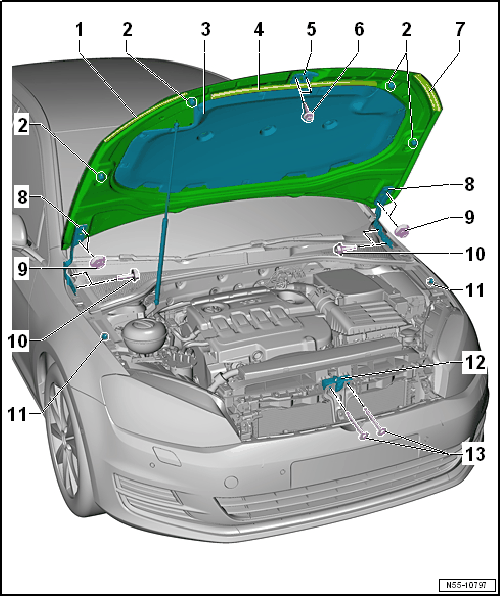

Fig 1: Exploded View Of Hood

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Hood
- Removing and Installing. Refer to HOOD, REMOVING AND INSTALLING .
- Adjusting. Refer to HOOD, ADJUSTING .
Adjusting Buffer
- Quantity: 2
Insulation
- Removing and Installing. Refer to INSULATION, REMOVING AND INSTALLING .
Center Seal
Striker
- Removing and Installing. Refer to STRIKER, REMOVING AND INSTALLING .
Bolt
- 12 Nm
- Quantity: 2
Side Seal
- Right and left
Hinge
- Removing and Installing. Refer to HINGES, REMOVING AND INSTALLING .
Nut
- 22 Nm
- Quantity: 2 on each side
Bolt
- 22 Nm
- Quantity: 2 on each side
Protective Film
- For the adjusting buffer
Latch
- Removing and Installing. Refer to LATCH, REMOVING AND INSTALLING .
Bolt
- 12 Nm
- Quantity: 2
