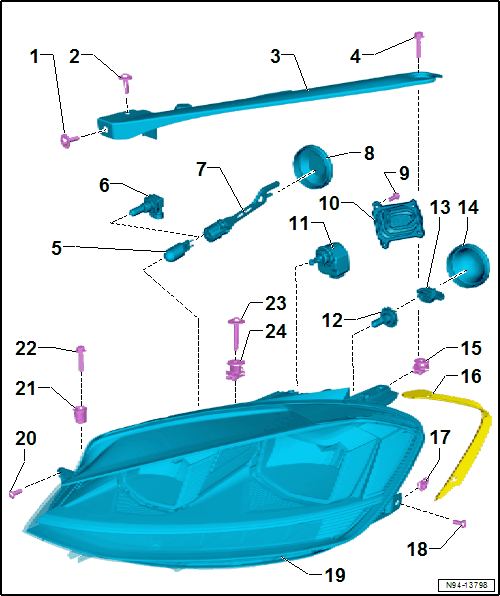

Overview - Headlamp, Dual Bulb Halogen Headlamps
- Bolt
- Tightening Specification. Refer to OVERVIEW - LOCK CARRIER .
- Bolt
- Tightening Specification. Refer to OVERVIEW - LOCK CARRIER .
- Support
- Bolt
- 8 Nm
- Front Turn Signal Bulb
- Left Front Turn Signal Bulb -M5-
- Right Front Turn Signal Bulb -M7-
- Removing and installing. Refer to Left Front Turn Signal Bulb -M5- /Right Front Turn Signal Bulb -M7-, REMOVING AND INSTALLING .
- High Beam Headlamp Bulb
- Left High Beam Headlamp Bulb -M30-
- Right High Beam Headlamp Bulb -M32-
- Removing and installing. Refer to LEFT AND RIGHT HIGH BEAM HEADLAMP BULB -M30- / -M32-, REMOVING AND INSTALLING .
- Socket
- For the front turn signal lamp
- Cap
- For high beam headlamp bulb and front turn signal bulb
- Bolt
- 1.2 Nm
- Use if a repair is required
- Quantity: 4
- Housing Cover
- Use if a repair is required
- For headlamp beam adjustment motor
- Headlamp Beam Adjustment Motor
- Left Headlamp Beam Adjustment Motor -V48-
- Right Headlamp Beam Adjustment Motor -V49-
- Removing and installing. Refer to LEFT AND RIGHT HEADLAMP BEAM ADJUSTMENT MOTOR -V48- / -V49-, REMOVING AND INSTALLING, DUAL BULB HALOGEN HEADLAMPS .
- Low Beam Headlamp Bulb
- Left Low Beam Headlamp Bulb -M29-
- Right Low Beam Headlamp Bulb -M31-
- Removing and installing. Refer to LOW BEAM HEADLAMP BULB, REMOVING AND INSTALLING .
- Socket
- To the low beam headlamp bulb mount
- Cap
- For the low beam headlamp bulb
- Lifter
- Gap Seal
- Knotted in the headlamp
- Spring Nut
- Bolt
- 4 Nm
- For attaching the bumper guide
- Headlamps
- Left Front Headlamp -MX1-
- Right Front Headlamp -MX2-
- Removing and installing. Refer to HEADLAMP, REMOVING AND INSTALLING .
- Installation position, correcting. Refer to HEADLAMP INSTALLATION POSITION, CORRECTING .
- Adjusting. Refer to HEADLAMP, ADJUSTING .
- Impact Screw
- For adjusting the headlamp parallel to the hood edge
- Banjo Bolt
- For the headlamp height adjustment
- Bolt
- 4 Nm
- For attaching to the lock carrier
- Bolt
- 4 Nm
- Lifter
