Overview - Fog Lamps, Only "GTI"

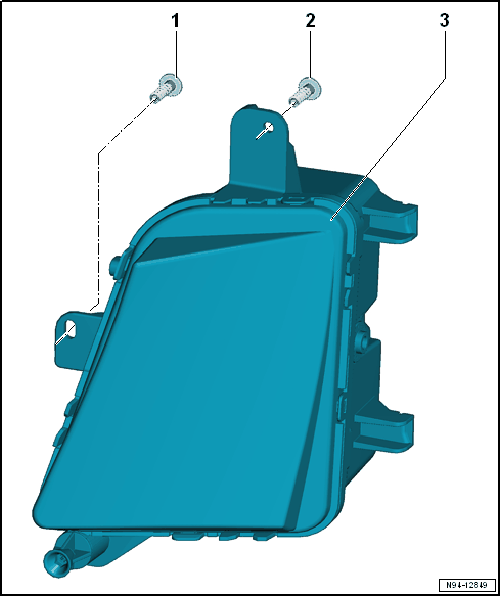

Fig 1: Fog Lamp, GTI & GTD With Bolts
GWWN94-12849Courtesy of AUDI OF AMERICA, LLC
  1. Bolt
    • 2 Nm
  2. Bolt
    • 2 Nm
  3. Fog Lamps
