Overview - Blind Spot Detection, Sedan

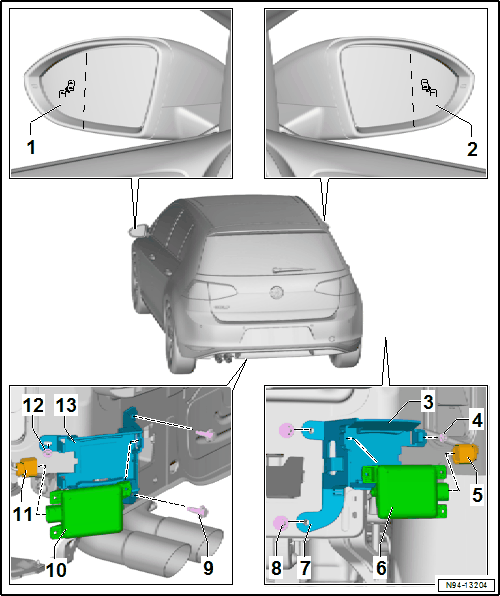

Fig 1: Blind Spot Detection
GWWN94-13204Courtesy of AUDI OF AMERICA, LLC
  1. Blind Spot Detection Warning Lamp in Left Exterior Mirror -K303-
  2. Blind Spot Detection Warning Lamp in Right Exterior Mirror -K304-
  3. Bracket
  4. Nut
    • 6 Nm
  5. Connector
  6. Blind Spot Detection Control Module -J1086-
  7. Bracket
    • Lower attachment point
  8. Bolt
    • 2 Nm
  9. Bolt
    • 2 Nm
  10. Blind Spot Detection Control Module 2 -J1087-
  11. Connector
  12. Nut
    • 2 Nm
  13. Bracket
