Tire Pressure Monitoring Control Module -J502-, REMOVING AND INSTALLING: Removing

-- Switch off the ignition.

Vehicles without Trailer Hitch

-- Remove the bumper cover. Refer to REAR BUMPER COVER, REMOVING AND INSTALLING .

Continuation for All Vehicles

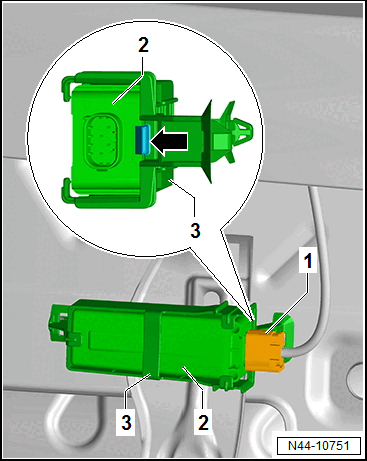

-- Disconnect the connector -1- from the Tire Pressure Monitoring Control Module -J502- -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Lightly press the tab -arrow- outward and remove the Tire Pressure Monitoring Control Module -J502- -2- from the bracket -3-.
