Component Location Overview - Airbag Crash Sensors

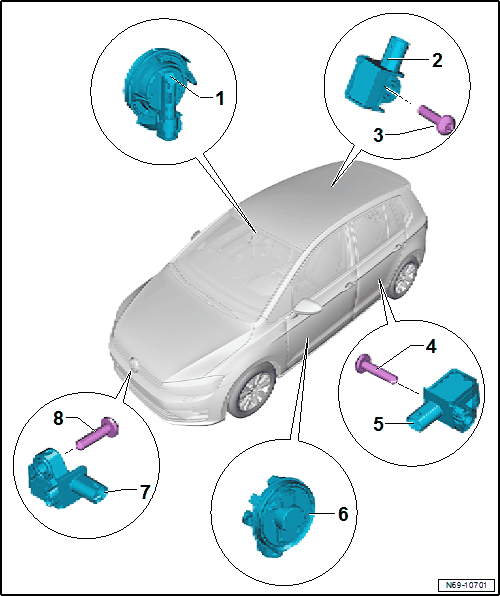

Fig 1: Component Location Overview Of Airbag Crash Sensors

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Front Passenger Thorax Airbag Crash Sensor -G180-
   • Component location: inside the door
   • Safety precautions for working with front thorax airbag crash sensors (pressure sensors).
   • Removing and Installing. Refer to Driver Thorax Airbag Crash Sensor -G179- / Front Passenger Thorax Airbag Crash Sensor -G180-, REMOVING AND INSTALLING .
2. Passenger Side Rear Thorax Airbag Crash Sensor -G257-
   • Component location: under the wheel housing trim panel
   • Removing and Installing. Refer to Driver Side Rear Thorax Airbag Crash Sensor -G256- / Passenger Side Rear Thorax Airbag Crash Sensor -G257-, REMOVING AND INSTALLING .
3. Bolt
   • 9 Nm
4. Bolt
   • 9 Nm
5. Driver Side Rear Thorax Airbag Crash Sensor -G256-
   • Component location: under the wheel housing trim panel
   • Removing and Installing. Refer to Driver Side Rear Thorax Airbag Crash Sensor -G256- / Passenger Side Rear Thorax Airbag Crash Sensor -G257-, REMOVING AND INSTALLING .
6. Driver Thorax Airbag Crash Sensor -G179-
   • Component location: inside the door
   • Safety precautions for working with front thorax airbag crash sensors (pressure sensors).
   • Removing and Installing. Refer to Driver Thorax Airbag Crash Sensor -G179- / Front Passenger Thorax Airbag Crash Sensor -G180-, REMOVING AND INSTALLING .
7. Front Airbag Crash Sensor -G190-
   • Component location: in the vehicle center on the lock carrier
   • Removing and Installing. Refer to Front Airbag Crash Sensor -G190-, REMOVING AND INSTALLING .
8. Bolt
   • 9 Nm
