Third Row Rear Three-Point Seat Belt, Removing And Installing: Removing

NOTE:

The following describes the removing and installing on the left side of the vehicle. Removing and installing on the right side is similar.

-- Remove the seat. Refer to SEAT, REMOVING AND INSTALLING .

-- Remove the rear sill trim. Refer to SILL PANEL, REMOVING AND INSTALLING .

-- Remove the C-pillar trim panel. Refer to C-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the luggage compartment side trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

-- Remove the third row rear belt end fitting. Refer to THIRD ROW REAR BELT END FITTING, REMOVING AND INSTALLING .

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

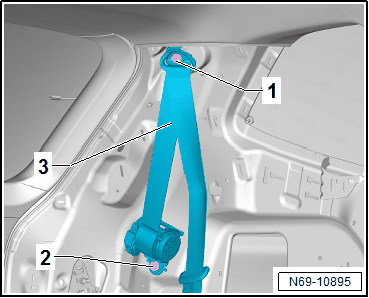

-- Remove the bolts -1 and 2-.

-- Guide out the three-point seat belt -3- from the mount.
