Rear Seat Belt Latch, Removing And Installing, Third Row: Removing

-- Unclip and free up the wire for the seat belt switch from the rear seat frame.

-- Unlock the seat and fold it forward.

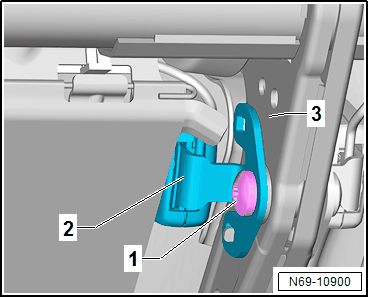

-- Remove the bolt -1-.

GWWN69-10900Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the seat belt latch -2- downward from the seat frame -3-.
