Third Row Rear Belt End Fitting, Removing And Installing: Removing

-- Unlock the seat and fold it forward.

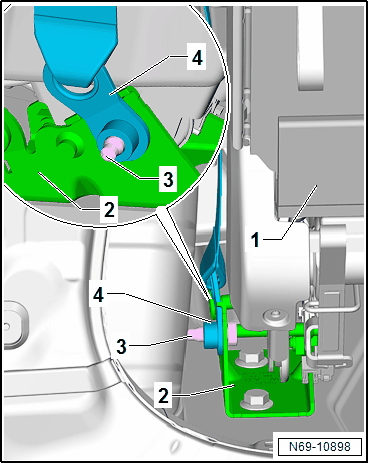

-- Remove the bolt -3- and remove the belt end fitting -4- from the mounting bracket -2-.

GWWN69-10898Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
