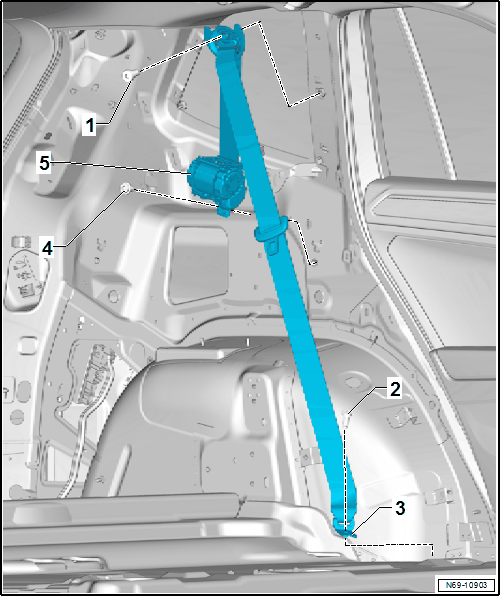

Overview - Outer Rear Three-Point Seat Belt, Without Belt TENSIONER

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Bolt
   • 40 Nm
   • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
2. Bolt
   • 40 Nm
   • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
3. Outer Rear Belt End Fitting
   • Removing and Installing. Refer to SECOND ROW REAR OUTER BELT END FITTING, REMOVING AND INSTALLING .
4. Bolt
   • 40 Nm
   • Replace the bolt if it was removed because of an accident when the seat belt was buckled.
5. Automatic Belt Retractor
   • Removing and Installing. Refer to OUTER SECOND ROW REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
