Pressure Hose Sensor for Front Pedestrian Protection -G579-, REMOVING AND INSTALLING: Removing
-- Disconnect the battery ground cable with the ignition turned on. Refer to BATTERY, DISCONNECTING AND CONNECTING .
-- Remove the bumper cover. Refer to FRONT BUMPER COVER, REMOVING AND INSTALLING / REAR BUMPER COVER, REMOVING AND INSTALLING .

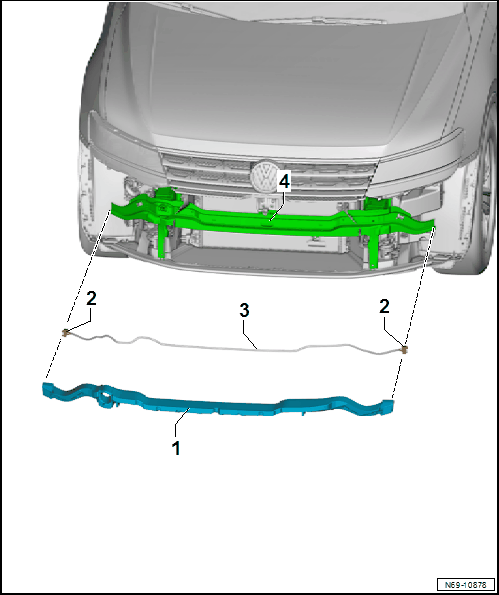

-- Unclip the foam piece -1- from the impact member -4-.
-- Disconnect the connectors from the pressure sensors -2-.
-- Unclip the pressure hose -3- with the two pressure sensors -2- from the foam piece -1-.
