Passenger Occupant Detection System Pressure Sensor, Removing And Installing: Installing
Further installation is performed in reverse order of removal, while noting the following:
On vehicles with seat heating, the passenger occupant detection system pressure sensor and the seat heating element are a shared component.
- Follow all safety precautions when working on pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
- Before handling airbag units (for example, disconnecting the connector), the person handling it must "discharge static electricity". For example, this can be done by briefly touching the door striker.
-- Connect the cover and cushion. Refer to SEAT PAN COVER AND CUSHION, SEPARATING .
-- Install the seat cushion and cover. Refer to SEAT PAN COVER AND CUSHION, REMOVING AND INSTALLING .
-- Route and secure the wiring harness for the passenger occupant detection system sensor on the seat frame.

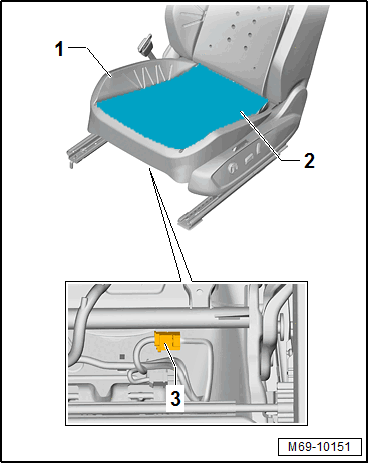

-- Connect the sensor connector -3- for the passenger occupant detection system to the wiring harness.
Make sure the connectors are pushed in all the way and that they engage audibly.
Make sure the wires are not pinched.
-- Connect the battery ground cable with the ignition switched on. Refer to BATTERY, DISCONNECTING AND CONNECTING .
If the ignition is not switched on after the battery is reconnected - "indicator lamps in the instrument cluster do not light up" - the ignition (key/button) may only be switched on when the driver seat is positioned all the way back.
If the Airbag Indicator Lamp -K75- indicates a fault after installing, check the DTC memory, erase it and check it again using the Vehicle Diagnostic Tester.
