Overview - Passenger Occupant Detection System

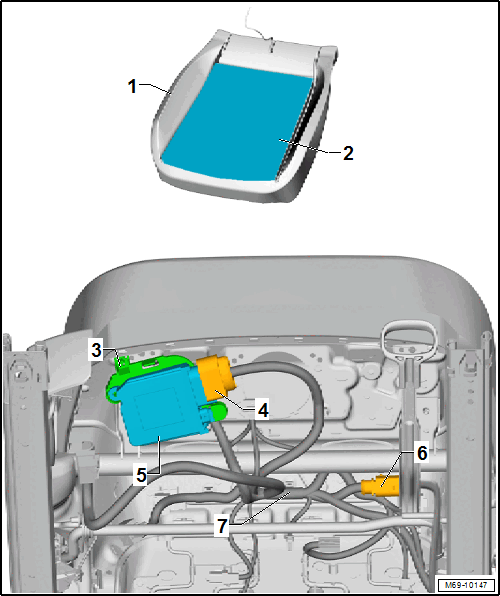

Fig 1: Passenger Occupant Detection System

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

1. Front Seat Cushion
   • Must not be disconnected from the passenger occupant detection system pressure sensor
   • The components are separated from each other; replace both components
2. Passenger Occupant Detection System Pressure Sensor
   • Must not be separated from the front seat cushion cover
   • The components are separated from each other; replace both components
   • On vehicles with seat heating, the passenger occupant detection system sensor and the Front Passenger Seat Heating Element -Z8- are a shared component.
   • Removing and Installing. Refer to PASSENGER OCCUPANT DETECTION SYSTEM PRESSURE SENSOR, REMOVING AND INSTALLING .
3. Bracket
   • Clipped to the seat frame
   • Removing and Installing. Refer to Passenger Occupant Detection System Control Module -J706- BRACKET, REMOVING AND INSTALLING .
4. Connector
   • For the Passenger Occupant Detection System Control Module -J706-
5. Passenger Occupant Detection System Control Module -J706-
   • Removing and Installing. Refer to PASSENGER OCCUPANT DETECTION SYSTEM CONTROL MODULE, REMOVING AND INSTALLING .
6. Connector
   • Connector for the passenger occupant detection system sensor
7. Front Seat Wiring Harness
   • Make sure there is correct routing and fastening on the seat frame
