Airbag Connector, Replacing: Removing

WARNING:

Observe the safety precautions for pyrotechnical components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .

-- Remove the driver side airbag. Refer to AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .

-- Release the connector lock -2- using a small screwdriver -arrow- and remove the connector -1- from the Driver Airbag Igniter -N95-.

Fig 1: Disconnect Harness Connector -1-, Connector Lock -2-
GWWA69-10573Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

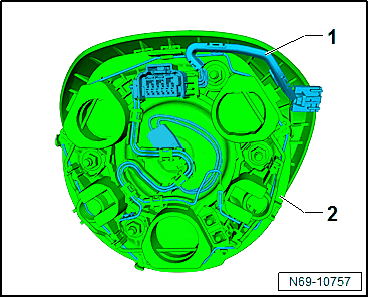

-- Disconnect the connectors from the wiring harness -1-.

GWWN69-10757Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Disengage the wiring harness at the brackets and remove from the driver side airbag -2-.
