Latch Child Seat Anchor Guide, Removing And Installing: Removing

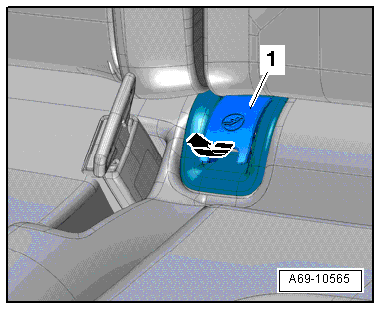

Fig 1: Unclipping Latch Child Seat Anchor Cover -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Unclip and remove the cover -1- from the LATCH child seat anchor -arrow-.

-- Push the guide -1-, corresponding to cut-out, downward and disengage it from the LATCH child seat anchor -2-.

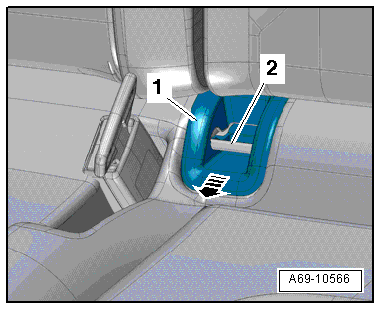

Fig 2: Pushing Latch Child Seat Anchor Guide -1-

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Remove the guide forward -arrow-.
