Overview - Airbag Control Module

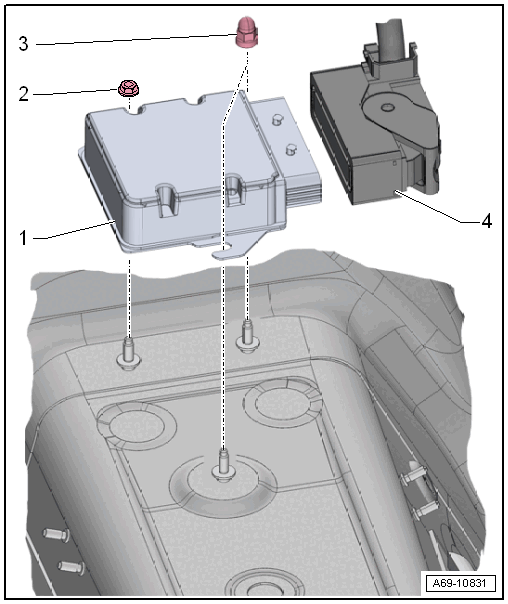

Fig 1: Airbag Control Module Components Location
GWWA69-10831Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Airbag Control Module -J234-
  2. Nut
    • 9 Nm
    • Nut and ground pin serve as a ground connection for the control module
    • The threads must be free of paint and dirt
  3. Nut
    • 9 Nm
    • Quantity: 2
    • Nut and ground pin serve as a ground connection for the control module
    • The threads must be free of paint and dirt
  4. Connector
