Part II: Notes

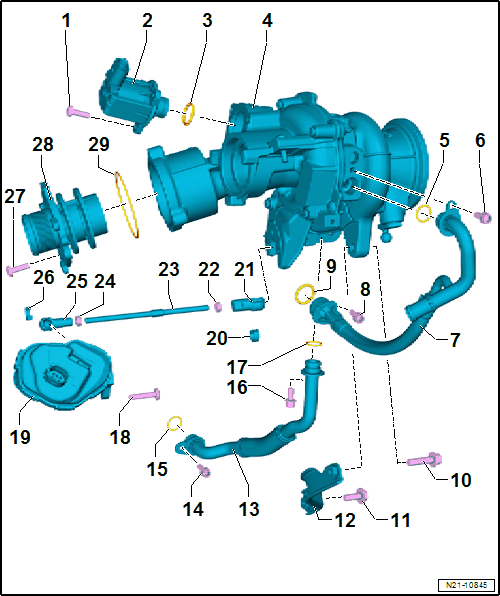

Fig 1: Exploded View Of Turbocharger Version 2

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bolt
- 9 Nm
Turbocharger Recirculation Valve -N249-
- Note the installation position. Refer to Figure.
O-Ring
- Always replace
Turbocharger
- Removing and installing. Refer to TURBOCHARGER, REMOVING AND INSTALLING .
O-Ring
- Always replace
- Coat with coolant
Bolt
- 9 Nm
Coolant Return Line
Bolt
- 9 Nm
O-Ring
- Always replace
- Coat with coolant
Bolt
- 30 Nm
- Coat the thread with hot bolt paste. Refer to the Parts Information.
Bolt
- 30 Nm
Bracket
- For the turbocharger
Oil Return Line
Bolt
- 9 Nm
O-Ring
- Always replace
- Coat with engine oil
Bolt
- 9 Nm
O-Ring
- Always replace
- Coat with engine oil
Bolt
- 10 Nm
Charge Air Pressure Actuator -V465-
Clip
Ball Socket
Nut
- 10 Nm
Threaded Rod
Nut
- 10 Nm
Ball Socket
Clip
Bolt
- 9 Nm
Connection
O-Ring
- Always replace
- Coat with coolant
