Tiguan SE, FWD
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagram [DGUA]
>>
Wiring Diagram
>>

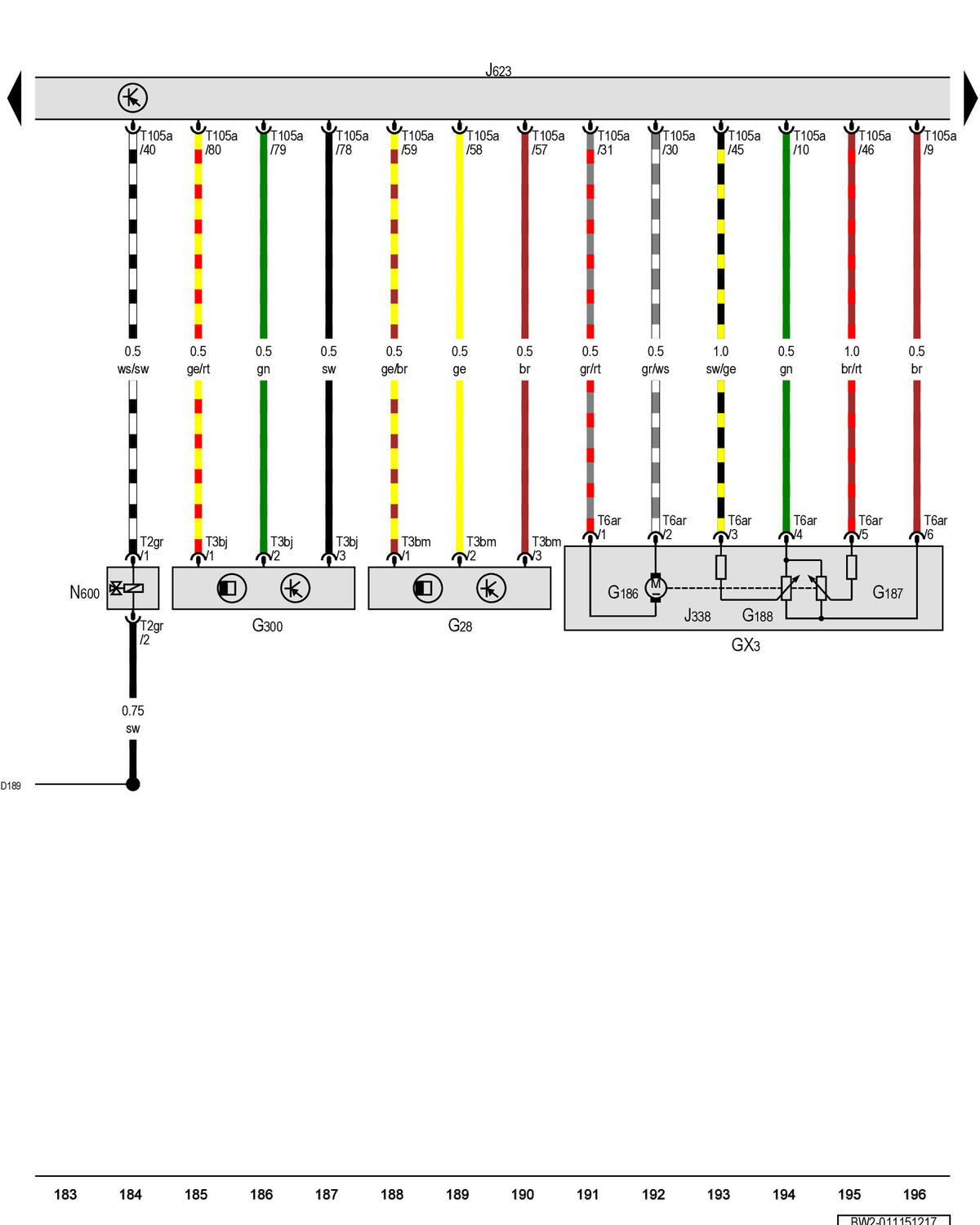

Throttle Valve Control Module, Engine Speed Sensor, Camshaft Position Sensor 3, Throttle Valve Control Module, Cylinder 4 Intake Cam Actuator A
>>
Notes
Throttle Valve Control Module, Engine Speed Sensor, Camshaft Position Sensor 3, Throttle Valve Control Module, Cylinder 4 Intake Cam Actuator A: Notes
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
