Home >> Volkswagen >> 2019 >> Tiguan SE, FWD >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Wiring Diagram [DGUA] >> Wiring Diagram >> Reduced Oil Pressure Switch, Oil Pressure Switch, Level 3, Cylinder 1 Fuel Injector, Cylinder 2 Fuel Injector, Cylinder 3 Fuel Injector, Cylinder 4 Fuel Injector, Coolant Shut-Off Valve >> Notes

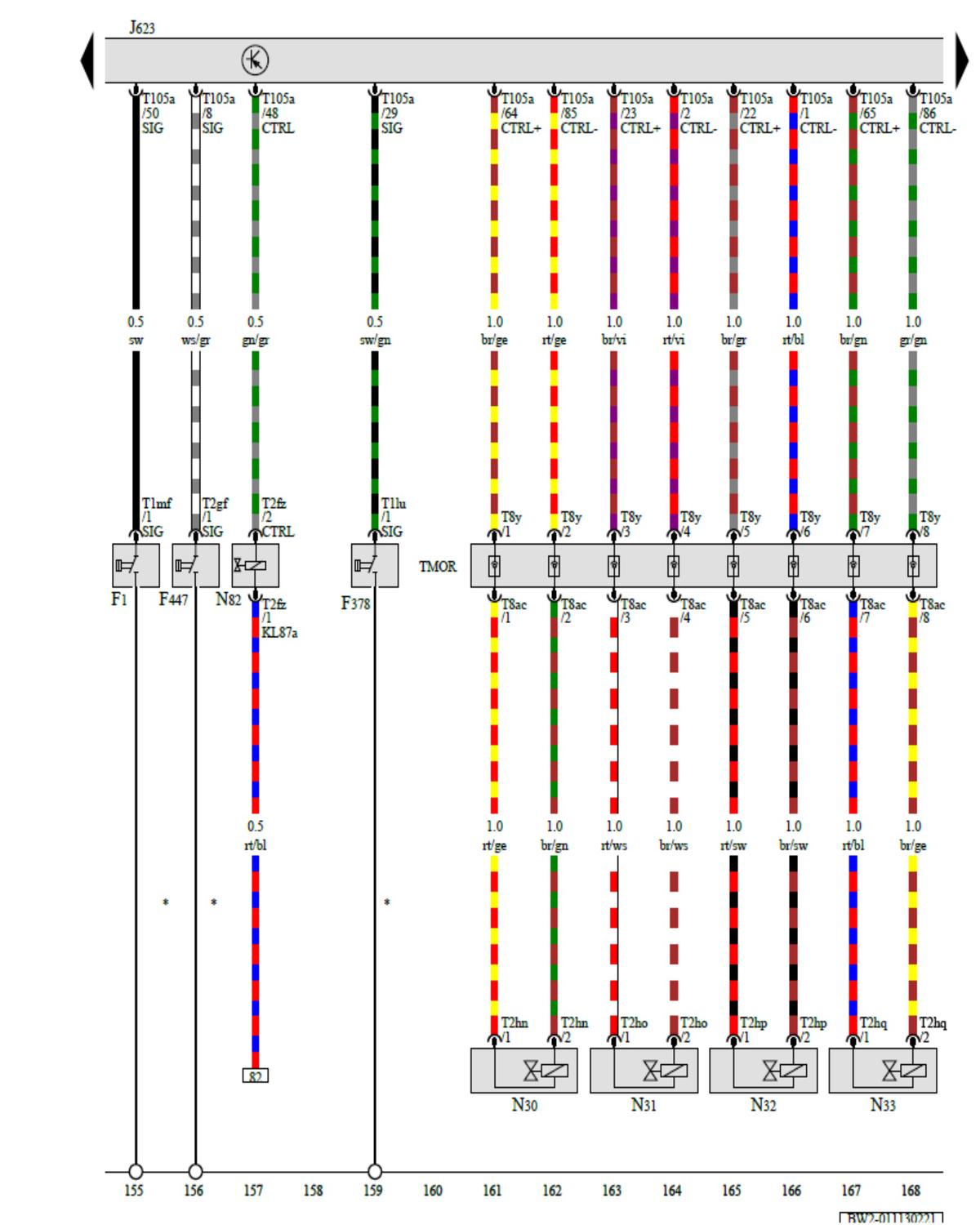

Reduced Oil Pressure Switch, Oil Pressure Switch, Level 3, Cylinder 1 Fuel Injector, Cylinder 2 Fuel Injector, Cylinder 3 Fuel Injector, Cylinder 4 Fuel Injector, Coolant Shut-Off Valve: Notes

GWWBW2-011131217Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
