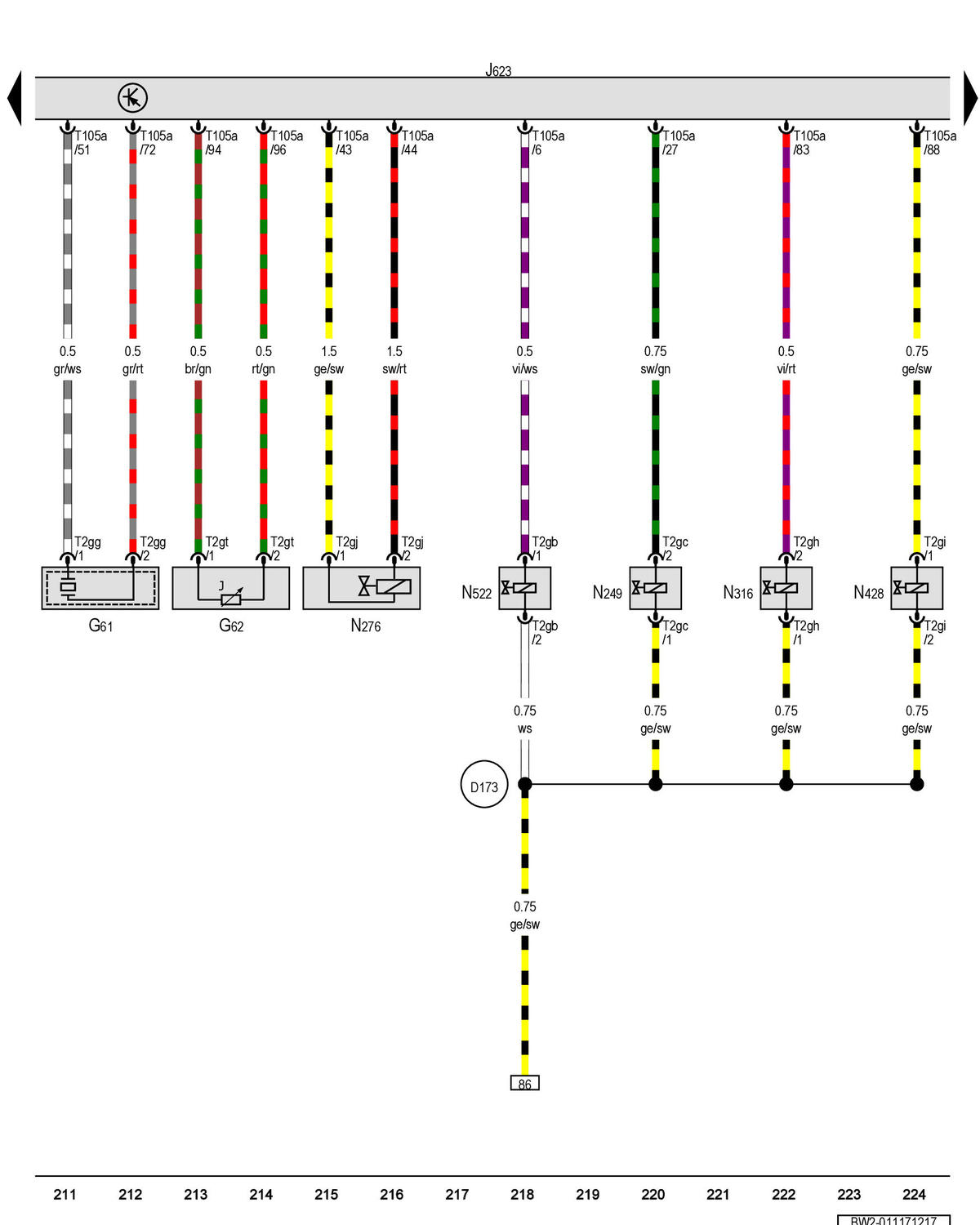

Knock Sensor 1, Engine Coolant Temperature Sensor, Turbocharger RECIRCULATION Valve, Fuel Pressure Regulator Valve, Intake Manifold Runner Control Valve, Oil Pressure Regulation Valve, Piston Cooling Nozzle Control Valve: Notes

GWWBW2-011171217Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
