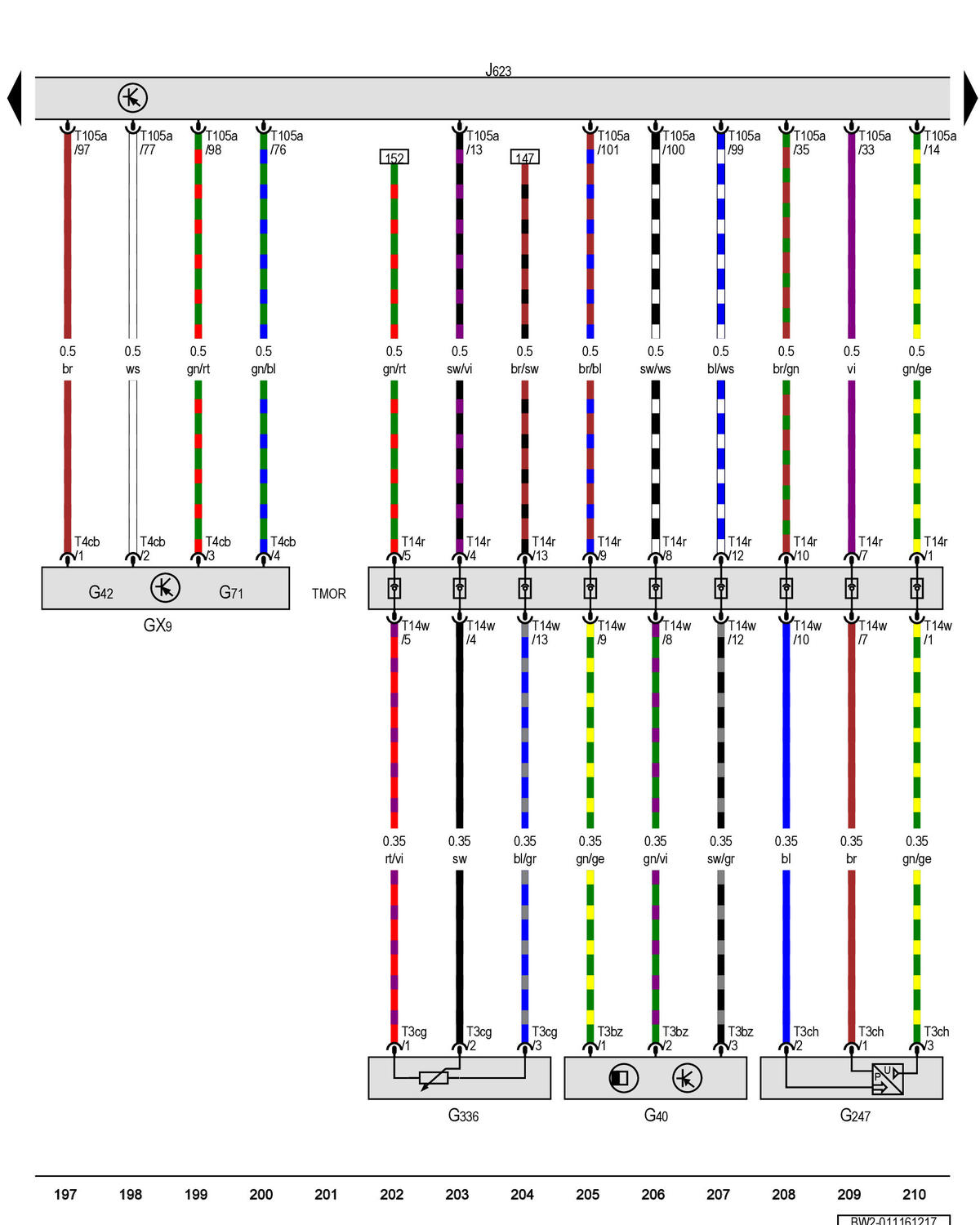

Intake Manifold Sensor, Camshaft Position Sensor, Fuel Pressure Sensor, Intake Manifold Runner Position Sensor: Notes

GWWBW2-011161217Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
