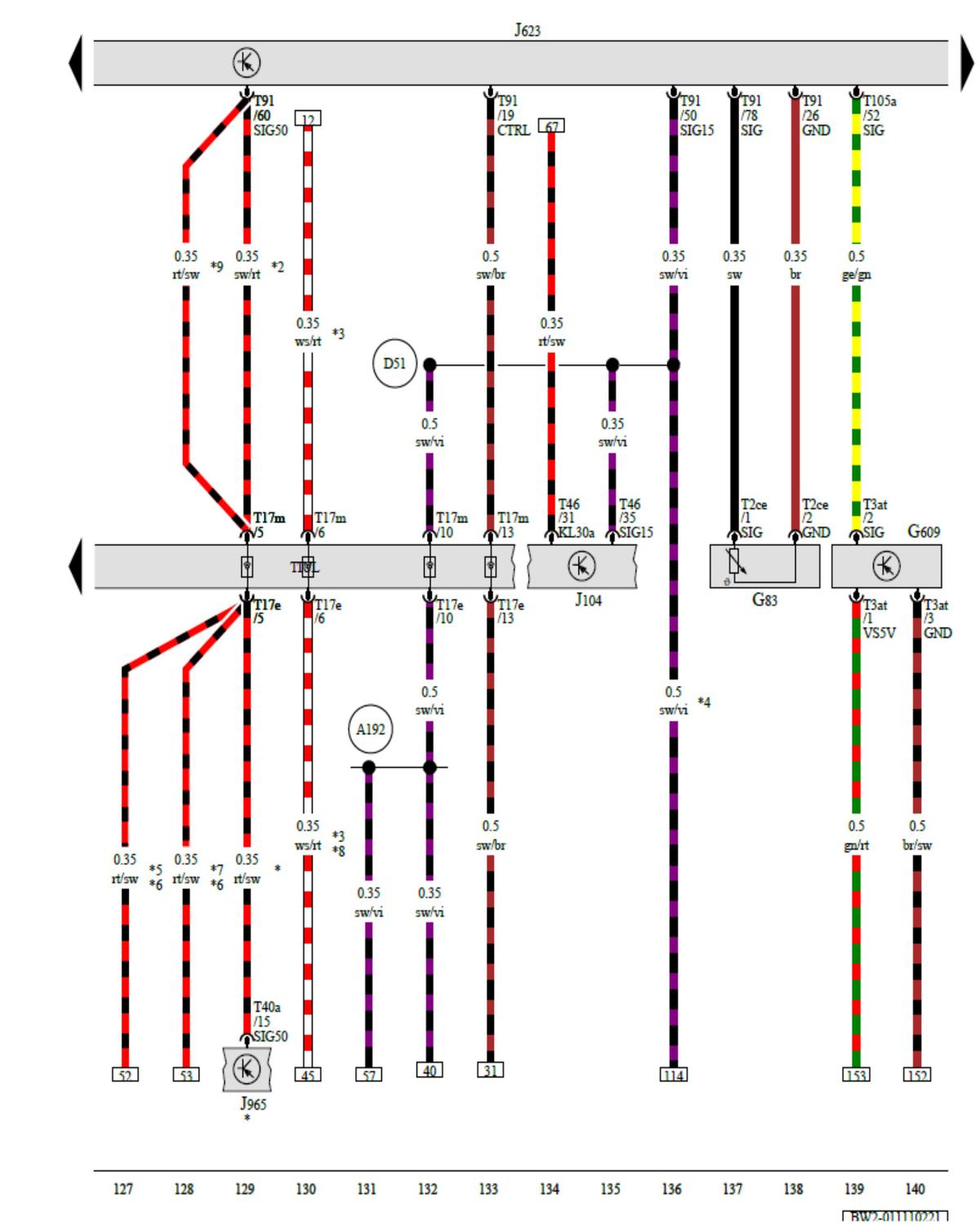

Engine Coolant Temperature Sensor On Radiator Outlet, Secondary Air Injection Sensor 1, Access/Start System Interface: Notes

GWWBW2-011111217

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
