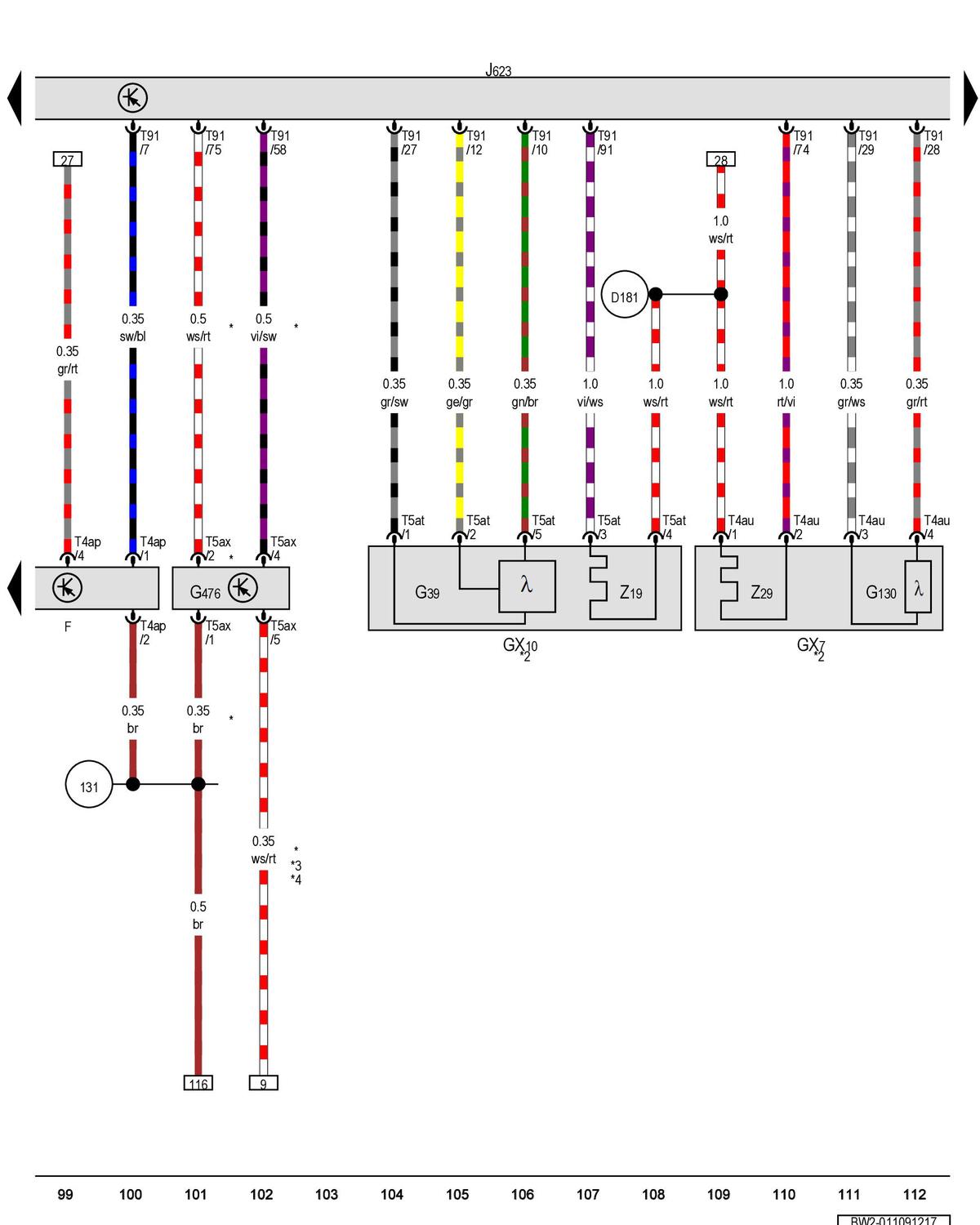

Brake Lamp Switch, Oxygen Sensor 1 After Catalytic Converter, Oxygen Sensor 1 Before Catalytic Converter, Clutch Position Sensor: Notes

GWWBW2-011091217Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
