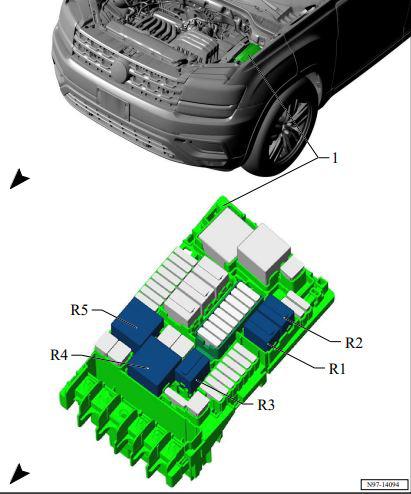

Fuse Panel B -SB Component Location

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

R1 - Starter Relay 1 -J906-

R2 - Starter Relay 2 -J907-

R3 - Horn Relay -J413-

R4 - Secondary air injection pump relay -J299-

R4 - High Heat Output Relay -J360-

R5 - Motronic Engine Control Module Power Supply Relay -J271-
Only for vehicles with gasoline engine

R5 - Terminal 30 Power Supply Relay -J317-
Only for vehicles with a diesel engine
