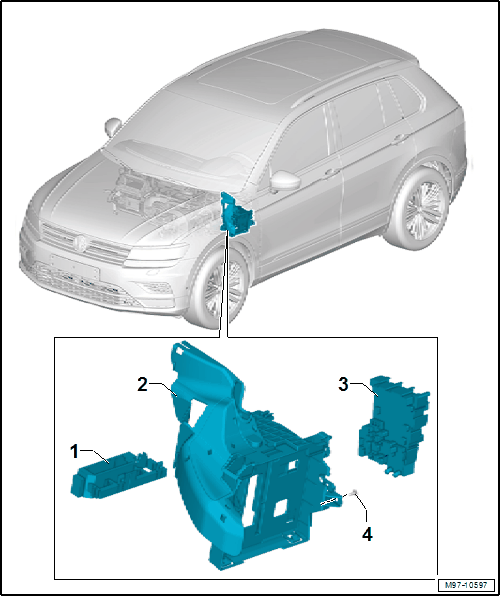

Relay Panel, Instrument Panel/A-Pillar Fuse Panel

NOTE:

The vehicle in the illustration is only a basic outline.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

Bracket
- For Parking Aid Control Module -J446- /Parallel Parking Assistance Control Module -J791-
- Removing and installing. Refer to Parking Aid Control Module -J446- /Parallel Parking Assistance Control Module -J791- BRACKET, REMOVING AND INSTALLING .
Bracket
- For Vehicle Electrical System Control Module -J519-
- Removing and installing. Refer to BRACKET FOR Vehicle Electrical System Control Module -J519-, REMOVING AND INSTALLING .
Fuse Panel C -SC-
- Removing and installing. Refer to RELAY AND FUSE PANEL BEHIND INSTRUMENT PANEL, REMOVING AND INSTALLING .
Bolt
- 4.5 Nm
- Quantity: 3
