Rear Lid Control Module -J605-, REMOVING AND INSTALLING: Removing

-- Turn off the ignition and all electrical equipment.

-- Move the ignition key outside of the vehicle to prevent the ignition from switching on unintentionally.

-- Remove the luggage compartment left trim panel. Refer to LUGGAGE COMPARTMENT SIDE TRIM PANEL, REMOVING AND INSTALLING .

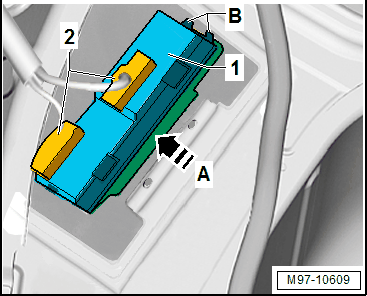

-- Release and disconnect the connectors -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- At the same time, push the Rear Lid Control Module -J605- -1- in the direction of -arrow A- until it stops.

-- Remove the Rear Lid Control Module -J605- -1- forward from the body.

-- Release the retainers -B arrows- on the Rear Lid Control Module -J605- -1-.
