Data Bus On Board Diagnostic Interface -J533-, REMOVING AND INSTALLING: Removing

-- Remove the footwell cover on the driver side. Refer to DRIVER SIDE FOOTWELL COVER, REMOVING AND INSTALLING .

Vehicles with Manual Transmission

-- Remove the mounting bracket with the clutch pedal. Refer to the appropriate Service Information .

Continuation for All Vehicles

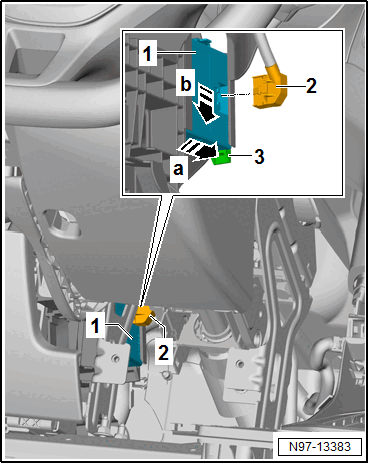

-- Reach upward behind the pedal bracket to disconnect the connector -2-.

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.

-- Release the retainers -3- in the direction of -arrow a-.

-- Remove the Data Bus on Board Diagnostic Interface -J533- -1- downward from the bracket in the direction of -arrow b-.
