Overview - Windshield Projection (Head-Up Display)

NOTE:

For reasons of clarity, the instrument panel is not illustrated.

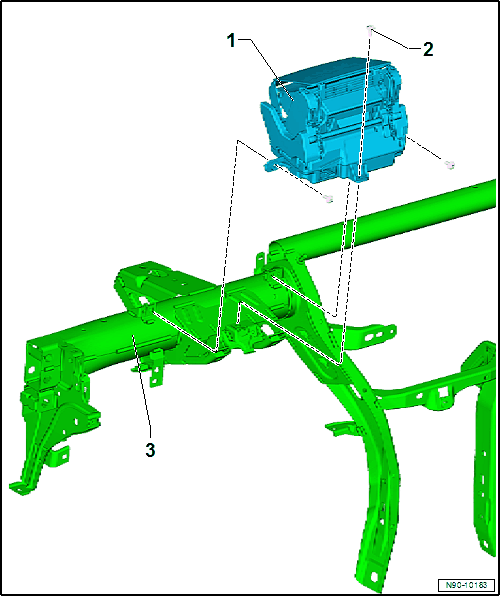

GWWN90-10183Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
  1. Windshield Projection Head Up Display Control Module -J898-
  2. Bolt
    • 1.5 Nm
    • Quantity: 3
  3. Instrument Panel Crossmember
