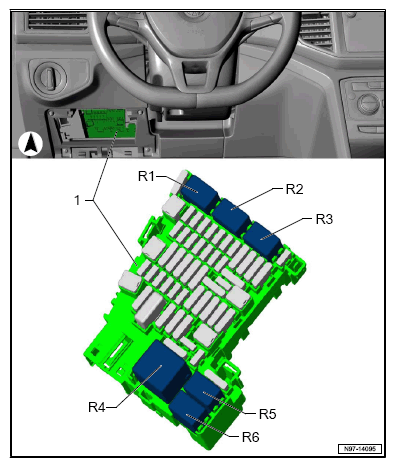

Relays on Fuse panel C -SC- (FROM September 2018)
1 - Fuse panel C -SC-
R1 - Reducing agent metering system relay -J963-
R2 - A/C clutch relay -J44-
R3 - Not used
R4 - Terminal 15 power supply relay -J329-
R5 - Rear window defogger relay -J9-
R6 - Sockets relay -J807-
 Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
|
