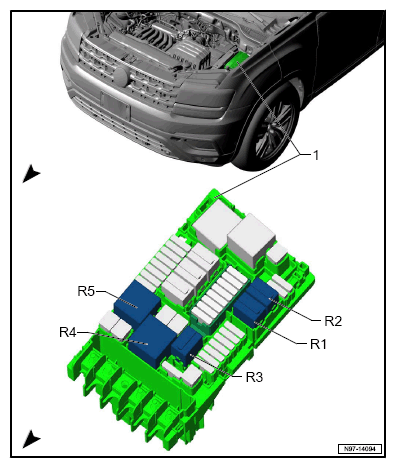

Relays on Fuse panel B -SB- (FROM MARCH 2017)

1 - Fuse panel B -SB-

R1 - Starter relay 1 -J906-

R2 - Starter relay 2 -J907-

R3 - Horn relay -J413-

R4 - Secondary air injection pump relay -J299-

R4 - High heat output relay -J360-

R5 - Motronic engine control module power supply relay -J271-

• only for vehicles with gasoline engine

R5 - Terminal 30 power supply relay -J317-

• only for vehicles with diesel engine

Courtesy of VOLKSWAGEN GROUP OF AMERICA, INC.
